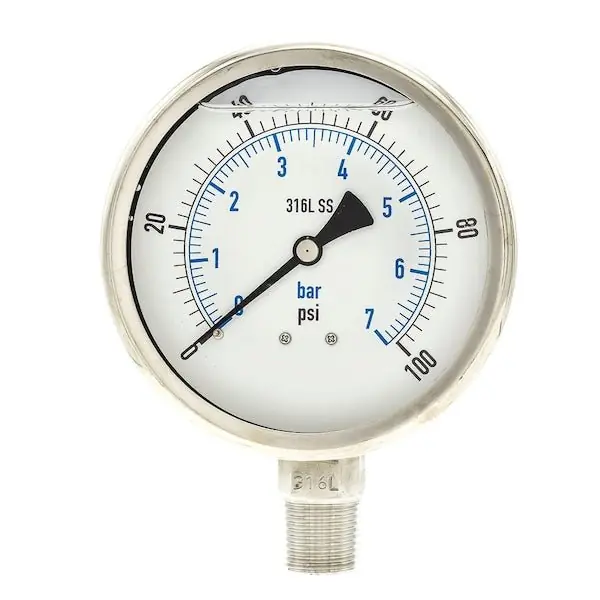

PIC Gauges PRO-301L-402E-01 Industrial Pressure Gauge 0 to 100 psi, 4 in Dial, Liquid-Filled, 1/2 in NPT Male, 300

Industrial Pressure Gauge, Nominal Dial Size 4 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/2 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 100, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge

Connection Location	Lower
For Use With	Brass, Industrial Applications, Media Compatible with Copper Alloy
Gauge Application	In Applications Where Vibration or Pulsation is Present
Range	0 to 100 psi
Accuracy	+/-2-1-2%
Material	Stainless Steel
Application	Industrial
Gauge Primary Range Values	0 to 100
Gauge Primary Range Units	psi
Gauge Connection Type	MNPT
Basic Gauge Case Material	Stainless Steel
Case Color	Metallic
Basic Gauge Socket Material	Stainless Steel
Liquid Filled	Yes
Basic Gauge Wetted Parts	Stainless Steel
Graduations	20 psi
Max. Pressure (PSI)	100
Gauge Filled With	Glycerin
Gauge Special Options	Heavy Duty
Basic Gauge Lens Material	Plastic
Gauge Accuracy	+/-2-1-2%
Calibration Certificate Included	No
Gauge Primary Range Numbered Graduations	20
Gauge Primary Range Smallest Graduation	2
Basic Gauge Sensor Material	Stainless Steel
Gauge Case Color	Stainless Steel
Smallest Graduation	2 psi
Operating Temp. Range	30 Degrees to 160 Degrees F
Gauge Sensor Material	316 Stainless Steel
Gauge Connection Location	Bottom
Gauge Case Material	Stainless Steel
Gauge Panel Mountable	No
Gauge Lens Material	Polycarbonate
Pressure and Vacuum Gauge Type	Pressure Gauge
Series	300
Gauge Socket Material	316 Stainless Steel
Socket Material	316 Stainless Steel
Standards	ASME
Scale Type	Dual
Accuracy Scale	Mid-Scale
Includes Calibration Certificate	No
Primary Scale Minor Graduations	2
Process Connection Type	NPT
Ambient Operating Temperature Range	30 Degrees to 160 Degrees F
Dial Face Material	Stainless Steel
Dial Color	White
Vibration Resistance	Liquid-Filled
Pointer Material	Aluminum
Cleaned for Oxygen Service	No
Includes Vent Plug	No
Field Fillable	No
Removable Bezel	No
IP/NEMA Rating	Not Rated
Process Connection Location	Bottom
Pointer Color	Black
Non-Sparking	No
Blowout Safety Back	No
Liquid-Filled Case	Yes
Panel-Mountable	No
Bezel Material	Stainless Steel
Gauge Case Liquid	Glycerin
Includes Mounting Hardware	No
Pressure Gauge Type	Industrial Pressure Gauge
Primary Scale Numeric Increments	20
Freeze Resistant Movement	No
Secondary Pressure Range	0 to 7
Hazardous Location Rating	Not Rated
Lens Material	Polycarbonate
Primary Pressure Range	0 to 100
Sensor Material	316 Stainless Steel
Primary Scale Units	psi
Bezel Mounting Type	Fixed
Dry Dampening Feature	None
Secondary Scale Units	bar
Accuracy Grade	ASME B40.100 Grade A
Pressure Range Type	Pressure
Process Connection Gender	Male
