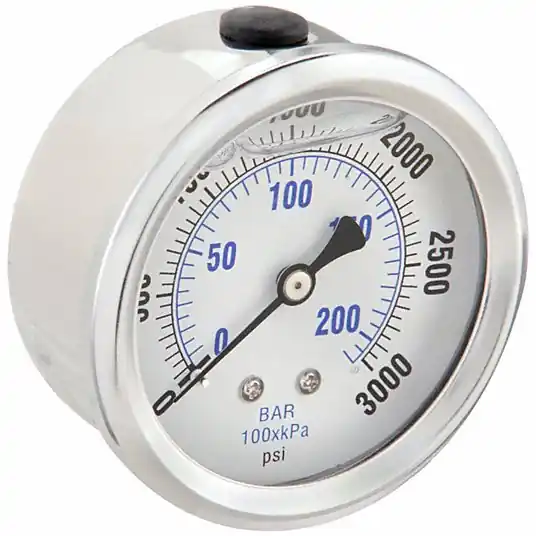

PIC Gauges PRO-202L-254P Industrial Pressure Gauge 0 psi to 3,000 psi, 2 1/2 in Dial, 1/4 in NPT Male, Copper

Industrial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 3,000, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White

Accuracy	+/-2-1-2%
Process Connection Location	Center Back
Process Connection Type	NPT
Application	General Purpose
Gauge Case Material	Stainless Steel
Series	202L
Lens Material	Polycarbonate
Primary Pressure Range	0 to 3,000
Primary Scale Units	psi
IP/NEMA Rating	Not Rated
Liquid-Filled Case	Yes
Hazardous Location Rating	Not Rated
Panel-Mountable	No
Blowout Safety Back	No
Includes	Vent Plug
Calibration Certificate Included	No
Case Color	Metallic
Gauge Application	General Purpose
Smallest Graduation	50 psi
Gauge Primary Range Smallest Graduation	50
Gauge Filled With	Glycerin
Socket Material	Copper Alloy
Case Material	Stainless Steel
Connection Type	MNPT
Wetted Materials	Copper
Standards	ASME
Includes Vent Plug	Yes
Scale Type	Dual
Removable Bezel	No
Secondary Pressure Range	0 to 207
Pressure Range Type	Pressure
Vibration Resistance	Liquid-Filled
Secondary Scale Units	bar
Includes Mounting Hardware	No
Cleaned for Oxygen Service	No
Process Connection Gender	Male
Bezel Mounting Type	Fixed
Dry Dampening Feature	None
Pointer Color	Black
Includes Calibration Certificate	No
Gauge Case Liquid	Glycerin
Dial Color	White
Primary Scale Minor Graduations	50
Pointer Material	Aluminum
Bezel Material	Stainless Steel
Freeze Resistant Movement	No
Field Fillable	No
Accuracy Scale	Mid-Scale
Ambient Operating Temperature Range	-30 Degrees to 180 Degrees F
Non-Sparking	No
Sensor Material	Copper Alloy
Pressure Gauge Type	Industrial Pressure Gauge
Accuracy Grade	ASME B40.100 Grade A
Maximum Pressure	3000
Operating Temperature Range	30 Degrees to 160 Degrees F
Primary Scale Pressure Measurement – Minimum	0 psi
Case Liquid	Glycerin
Compatible with Brand	Universal
Secondary Scale Pressure Measurement – Maximum	207 bar
Process Media Temperature – Minimum	30 Degrees F
Operating Temperature – Maximum	180 Degrees F
Secondary Scale Vacuum Measurement – Minimum	0 bar
Primary Scale Pressure Measurement – Maximum	3,000 psi
Process Media Temperature – Maximum	160 Degrees F
Operating Temperature – Minimum	-30 Degrees F
Compatible with Series	202L
Primary Scale Vacuum Measurement – Minimum	0 psi
Primary Scale Vacuum Measurement – Maximum	3,000 psi
Secondary Scale Pressure Measurement – Minimum	0 bar
NEMA Enclosure Rating	No Enclosure
