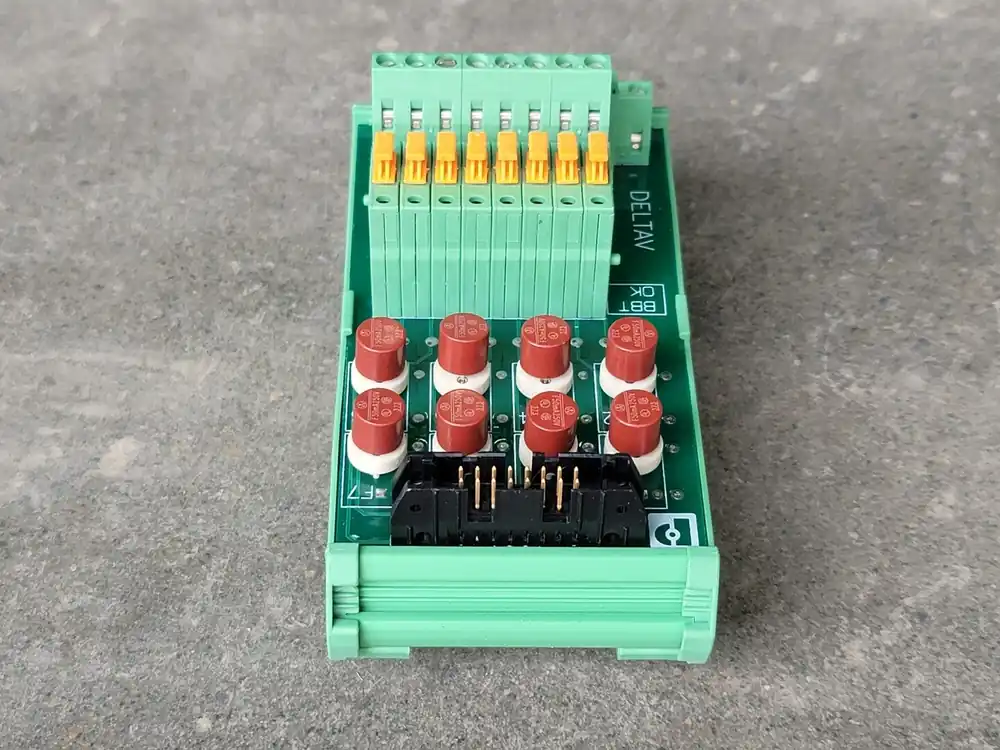

Passive Module UM-DELTAV/A/SI 5603256

Type: Interface Module

Number of Positions: 16

Number of Channels: 8

Nominal Voltage Un: 24 VDC

Max. Current Carrying Capacity per branch: 50 mA ( in as supplied state, with one 50 mAF fuse, max.1 A permitted)

Suitable I/O Card: VE4003S2B4, VE4005S2B3, VE4003S2B5

Connection Method (Field Level):- Screw Connection

Stripping Length: 7 mm

Screw Thread: M3

Connection Method (Controller Level):- IDC/FLK pin strip

Number of Connections: 1

Number of Positions: 16

Pitch: 2.54 mm

Housing Insulation Material: Polyamide PA non-reinforced

Ambient Temperature (Operation): -20 deg. C to 50 deg. C

Ambient Temperature (Storage/ Transport): -20 deg. C to 70 deg. C

Mounting Type: DIN Rail

Mounting Position: Any
