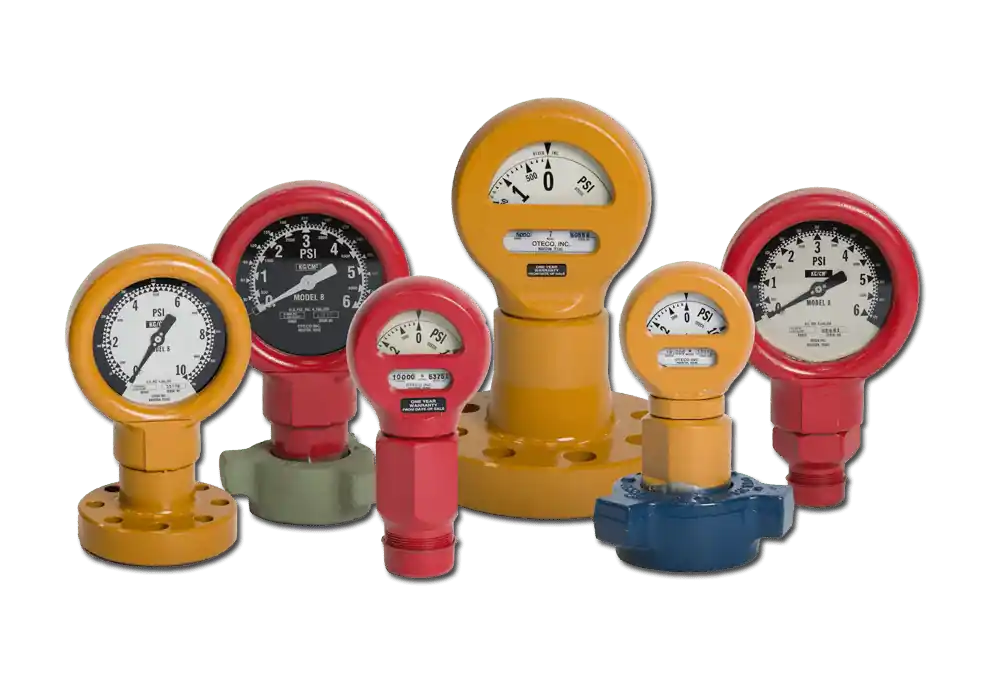

Oteco 381541 Model 8 Pressure Gauge Sour

PG,8SG,PSI,S6K,2.06-5K,RJ, Model 8 Pressure Gauge with Standard DUAL Dial Face, 0-6,000 psi / 0-420 kg/cm2, Sour Gas Service, 2-16″ – 5,000 API Flange (R-24) without SS Inlay

The OTECO Pressure Gauge offers high accuracy and dependability for your standpipe, mud pump, and other drilling and production applications where precision pressure measurements are required.

Features:

All pressure gauges have a built-in dampening mechanism to minimize wear and mechanical shock.

In addition, the heavy-duty seals restrict line fluid from entering the gauge mechanism.

The gauge mechanism itself is surrounded by a special oil providing resistance to extreme temperatures, as well as vibration and shock.

For additional safety, a low-pressure plug is installed to prevent gauge case and lens damage.

All gauges are available for standard, saltwater, and sour gas.

Manufactured, assembled and calibrated in the Oteco Houston, Texas, USA facility ensuring quality parts for accuracy and dependability.

Specifications:

Trim: Sour Gas

Dial Face Type: Standard

Dial Face Units: PSI

Pressure Range: 0 – 6000

Sub End Connection: Flanged: 2.06-5K RJ

Dial Case: 8-1/8 Inch Diameter

Height: 13-1/4 Inch

Temperature Rating: -20°F to 250°F

Manufacturer Description: PG,8SG,PSI,S6K,2.06-5K,RJ
