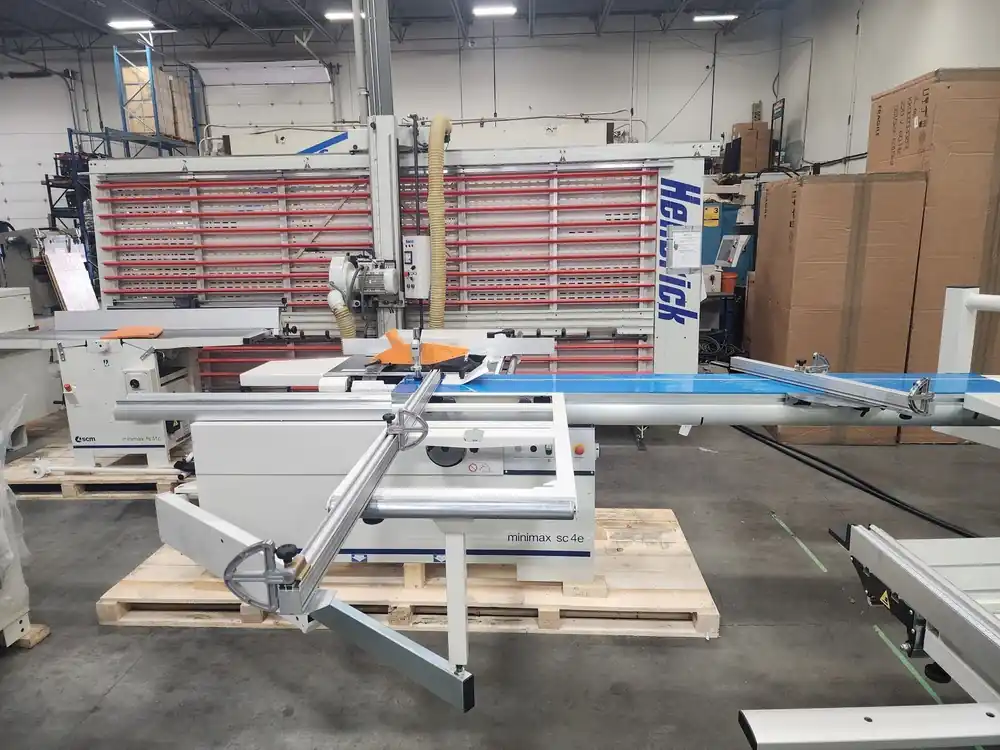

minimax sc 4e Circular Saw with Tilting Blade

Cast iron saw-spindle moulder worktable dim.: 840 x 560 mm

Blades Tilting: 90 / 45 deg

Max. Saw Blade w/ Scoring Blade Installed: 315 mm

Max. Saw Blade Projection from Table at 90 / 45 deg: 100/71 mm – 3.94/2.75 in.

Max. Squaring Stroke: 2600 mm

Cutting width with parallel fence: 1270 mm

Additional Features

Belt driven scoring unit complete with blade:

• With external setting up

• Blade diameter 100 mm Z 20

  “Dado set” capability:

• (Tools with max. diameter 203.2 mm / 8″ excluded)

• The machine is supplied with saw spindle, 5/8″ diameter (1 on si 315es and si 400es)

  Angular cutting device with flip-over stops, equipped with:

• Telescopic fence with two flip-over stops

• pre-set for angle rapid selection

  Additional table on the sliding table, for the support of panels with large dimensions

  Triple wall for 2600 mm sliding table
