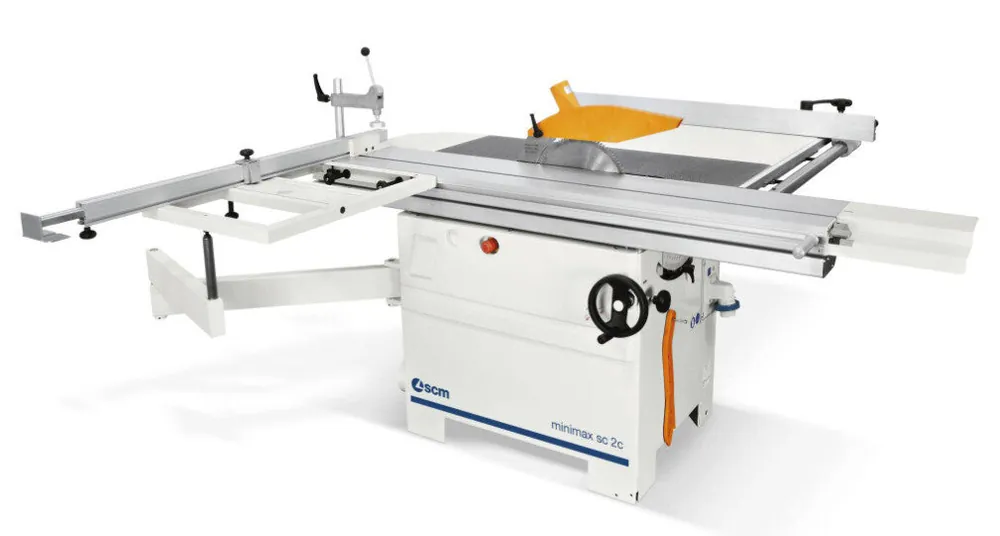

minimax sc 2c Circular Saw w/ Tilting Blade

Blades tilting: 90^o to 45^o

Max. saw blade projection from table at 90^o/45^o: 100/78 mm

Max. squaring stroke (standard): 1600 mm

Cutting width on parallel fence: 1270 mm

Exhaust outlet diameter: 120 mm

Standard Equipment

Extruded anodized aluminum sliding table (dimensions 270 x 124 x 1600 mm), sliding on high precision hardened steel guideways

Squaring frame complete with:

• telescopic fence with 1 retractable stop

• eccentric clamp

• support

  Dedicated saw parallel fence complete with:

• “high rigidity” cast iron fence support

• micrometric adjustment and cam-locking system

• rectified steel round sliding bar, 45 mm diameter

Additional Features

Belt driven scoring unit complete with blade (Adjustment from the machine outside without need of tools)

• Scoring blade technical features:

• External diameter: 80 mm

• Internal diameter: 20 mm

• Z 12

• Rotation speed: 7700 rpm

  2 Squaring flip-over stops

  Triple Wall
