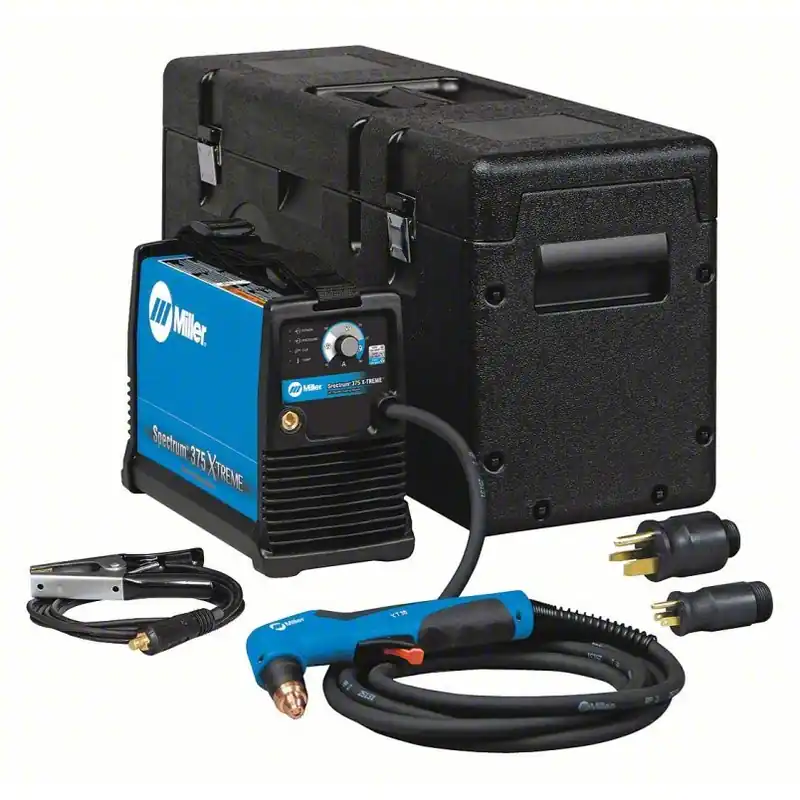

Miller Electric 907529 Plasma Cutter Spectrum 375 X-TREME, 30 A, 12 ft Handheld

Plasma Cutter, Cutting Configuration Plasma Cutting, For Material Type Aluminum, Mild Steel, Stainless Steel, For Maximum Material Thickness 3/8 in, For Minimum Material Thickness 1/16 in, Input Frequency 50/60 Hz, Input Voltage 110 V AC, 115 V AC, 120 V AC, 220 V AC, 230 V AC, 240 V AC, Max. Input Current 20 A @ 120V DC (Single-Phase), Phase Single-Phase, Plasma Cutter Model 907529, Maximum Output Current 30 A, Plasma Cutting Minimum Output Current 14 A

Rated Output	30 A
Input Voltage	110 V AC, 115 V AC, 120 V AC, 220 V AC, 230 V AC, 240 V AC
Cutting Capacity (In.)	3/8 at 10 IPM
Series	Spectrum 375 X-TREME
Input (Amps)	13.6/20A
Design	Inverter
PSI	90-120
Duty Cycle	120V (20A) – 20%, 120V (15A) – 35%, 240V – 35%
Application	Metal Cutting
Includes	Consumables Kit, Heavy-Duty Work Clamp, Shoulder Strap, X-CASE, XT30 hand-held torch with 12 ft Lead
Required Air Flow	5 cfm
Plasma Gas Type	Air, N2 (Nitrogen)
Plasma Cutter Model	907529
Phase	Single-Phase
Plasma Torch Type	Handheld
Input Frequency	50/60 Hz
Standards	CSA
Maximum Output Current	30 A
Plasma Cutting Output @ Duty Cycle	20 A @ 88V DC, 60% (120 V), 27 A @ 92V DC, 35% (120 V), 30 A @ 92V DC, 40% (240 V)
Cutting Configuration	Plasma Cutting
Max. Input Current	20 A @ 120V DC (Single-Phase)
Weight	19 lb
Plug Type	5-15P
Color	Blue
Plasma Cutting Minimum Output Current	14 A
Welding Processes	Plasma Cutting
Maximum Pressure – Air Compressor	120 psi
For Material Type	Aluminum, Mild Steel, Stainless Steel
