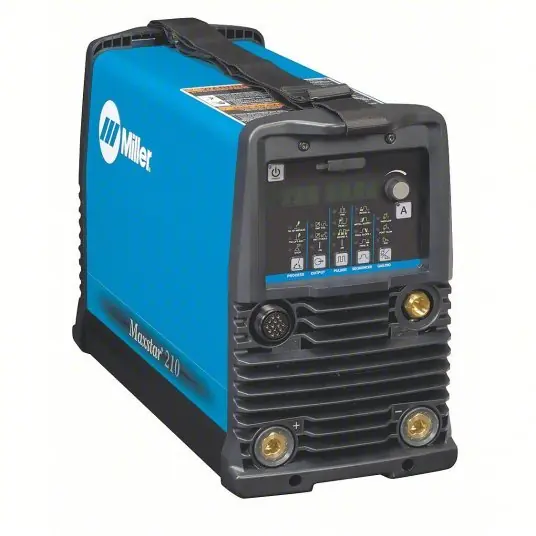

Miller® Maxstar® DX 210 110-480 V is the industry standard. Miller® pioneered the Maxstar-type market, now they’ve perfected it. The Maxstar® 210 Series provides a solution for a variety of needs, from simple to fully automated.
Welder Industrial Class
Medium
Welding Processes
Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage
110/115/120V AC, 208V AC, 220/230/240V AC, 380/400V AC, 460/480V AC
Rated Output
210A @ 18V
Welder Max. Output Amps
210
Welder Min. Output Amps
1
Welder Duty Cycle
60 %
Series
Maxstar 210 DX
Welded Material
Mild Steel, Stainless Steel
Power Source Weight
38 lb
Input (Amps)
26/6
Application
Aerospace, Dairy, Food and Beverage Industry, Petro Chemical, Precision Fabrication, Shipboard
Polarity
DC
Welder Input Hz
50/60
Welder Input Phase
1 or 3
Features
Wireless Remote Compatible
Includes
Power Source Only
Phase
Single-/Three-Phase
Standards
CE, CSA, ISO
Open Circuit Voltage
80V DC
Max. Input Current
15 A @ 208V (Three-Phase), 26 A @ 208V (Single-Phase)
TIG Welding Output @ Duty Cycle
210 A @ 18.4 V, 60%, 125 A @ 15 V, 60%
Power Cord Included
Yes
Welding Mode
CC
Stick Welding Output @ Duty Cycle
160 A @ 26.4 V, 60%, 90 A @ 23.6 V, 60%
Input Frequency
50/60 Hz
Stick Welding Maximum Output Current
210 A
Pulse Frequency
0.1 to 500 pulses/second
Remote Control
Remote Control Not Included
For Material Type
Specialty Metals, Stainless Steel, Steel
TIG Welding Minimum Output Current
1 A
Weight
38 lb
TIG Arc Start Feature
High Frequency Start, Lift Arc Start
Amperage Range
1 to 210 A
TIG Welding Maximum Output Current
210 A
Remote Connection Type
14-Pin (Miller)
Plug Type
Bare Leads
Stick Welding Minimum Output Current
5 A
Color
Blue
Model
907684
