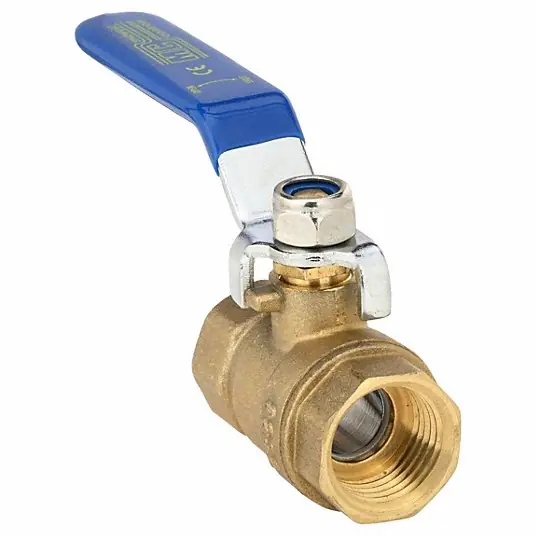

Midwest Controls G-F600-50 Manual Two-Way Ball Valve 1/2 in, Brass, Straight, FNPT x FNPT, Full Port Ball Port, 600 PSI CWP, 150 PSI Steam

Manual Two-Way Ball Valve, Body Material Brass, For Media Air, Steam, Water, Valve Construction Two-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure – Operating 600 psi, Maximum Pressure – Steam 150 psi, Maximum Pressure – Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle – Locking Non-Locking

Ball Material	Chrome Plated Brass
Body Style	Inline
Ball Port Style	Full Port
Valve Ways	2-Way
Valve Structure	Two-Piece
For Media	Air, Steam, Water
Connection Type	FNPT x FNPT
Mfr Model #	G-F600-50
Temp. Range	0 Degrees to 350 Degrees F
Ball Valve Product Group	Manual
Stem Type	Blowout Proof
Stem Material	Brass
Body Material	Brass
Standards	ANSI B1.20.3
Max. Pressure	600 PSI CWP
Handle Material	Chrome Plated Steel
Seat Material	PTFE
Handle Type	Lever
Seal Material	PTFE
Type	Full Port
Color – Valve Handle	Blue
Connection Gender – Side 1	Female
Maximum Pressure – Combustible Gas	Not Rated
Connection Gender – Side 2	Female
Connection Type – Side 1	NPT
Vented Ball Valve	Non-Vented
Connection Type – Side 2	NPT
Coefficient of Volume (Cv)	18.55
Maximum Pressure – Steam	150 PSI WSP
Operating Temperature – Minimum	0 Degrees F
Vacuum Service Rating	29 in Hg
Handle – Locking	Non-Locking
3-A Standard Compliance	Not Rated
Operating Temperature – Maximum	350 Degrees F
