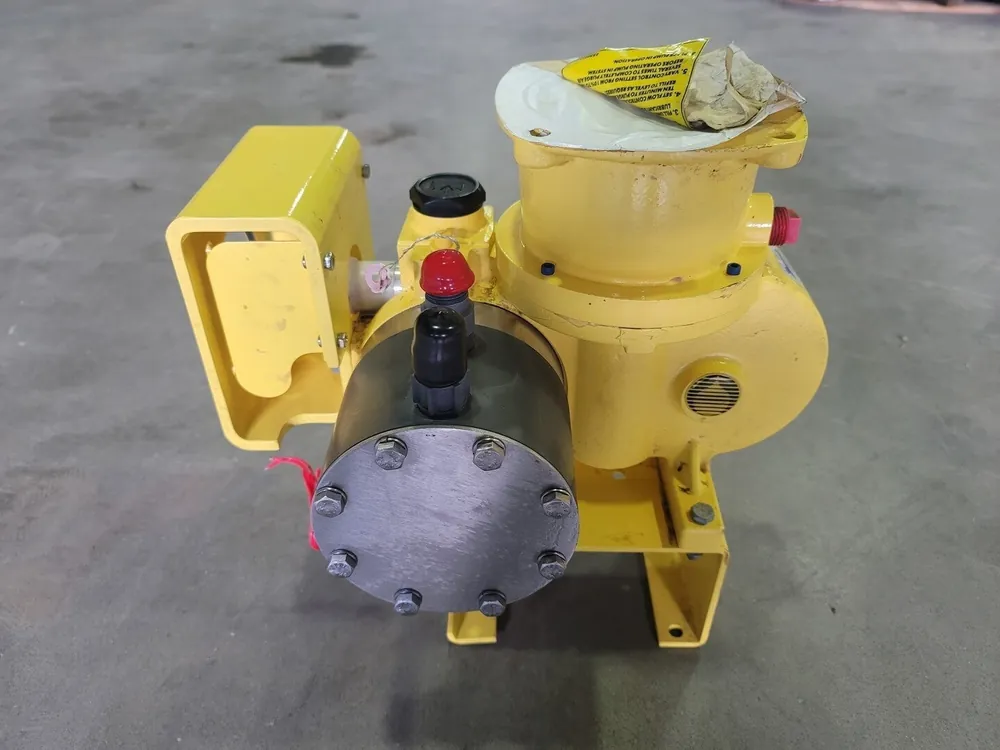

Metering Pump MRA12E245XAPPNM7YDNNNNNNN

Frame: MRA

Number of Heads: 1 (Simplex)

Liquid End Material: PVC

Plunger Diameter: 5/8″ (15.9mm)

Gear Ratio Code: 73 rpm @ 60 Hz, 60 rpm @ 50 Hz

Motor Mount Type: API Flange with flexible coupling

Suction Connection: ANSI 1/2 in. with raised face, thread, 150 class

O Ring Options: Standard- Typically Viton

Diaphragm Rupture Detection: Double Diaphragm with intermediate fluid and probe

Base: None

3.23 GPH at 150psi

3.32 GPH at 100psi
