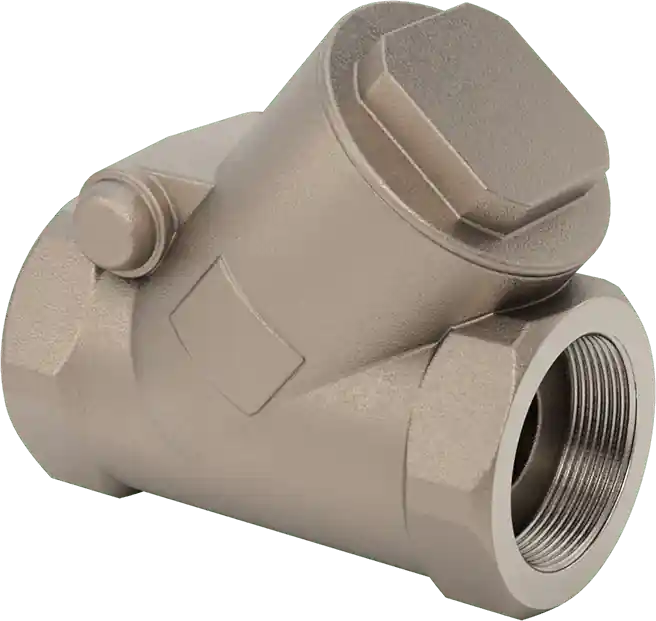

McMaster 9770K68 High-Flow Threaded Check Valve, Bronze Body, 2 NPT Female, 200 Pressure Class

McMaster 9770K68 High-Flow Threaded Check Valve, Bronze Body, 2 NPT Female, 200 Pressure Class

Original price was: $800.42.Current price is: $160.08.

SKU: SK0020156-US20260630-101428 Category: Tag:

To achieve the maximum possible flow, internal components are designed to reduce flow resistance. These valves open to allow flow in one direction and close when flow stops or reverses. A removable cap provides easy access to internal components for maintenance.

Body Material Bronze
Check Valve Type Swing
Inlet / Outlet Connects to Pipe
Fitting Connection Threaded
Gender Female
Thread Type NPT
Pressure Class 200
Pipe Size 2
Flow Coefficient (Cv) 92
Maximum Pressure @ Temperature 400 psi @ 150° F
Maximum Steam Pressure @ Temperature 200 psi @ 388° F
Minimum Opening Pressure 0.5 psi
Temperature Range -20° F to 550° F
End-to-End Length 5 7/8″
Mounting Position Horizontal, Vertical
Features Removable Cap
Specifications Met MSS SP-80
For Use With Air, Argon, Helium, Krypton, Neon, Steam, Water, Xenon
Disc Material Bronze
Seal Material Bronze
Actuation Pressure
Country of Origin United States
