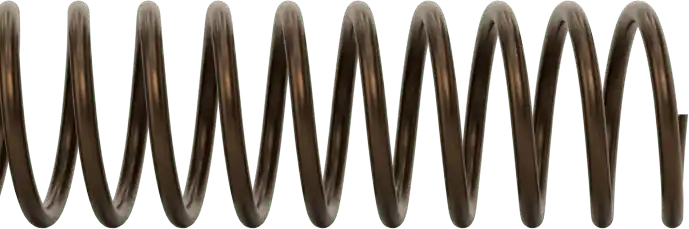

Always be ready for the perfect fit. These springs are extra long to cut a custom length whenever you need it. Their open ends make cutting easier but prevent them from standing on their own. You’ll need to install them in a hole or over a shaft, or grind the ends flat.
Spring Steel — Strong and resilient, but best suited for dry environments since moisture will cause these springs to rust.
Spring Rate — To determine the spring rate of a cut spring, first multiply the spring rate given by the spring’s original length, then divide the result by the cut length (in inches).
Material
Spring Steel
Length
36″
OD
0.375″
ID
0.305″
Wire Diameter
0.035″
Maximum Load
Not Rated
Spring Rate
0.19 lbf/in
End Type
Open
Compression Spring Type
Straight
Maximum Temperature
250° F
Performance
Cut-to-Length
Spring Type
Compression
System of Measurement
Inch
Temper Rating
Spring
Pack Size
5
Country of Origin
United States
DFARS Compliance
Specialty Metals COTS-Exempt
ECCN
EAR99
Schedule B Number
732020.5000
USMCA Qualifying
Yes
