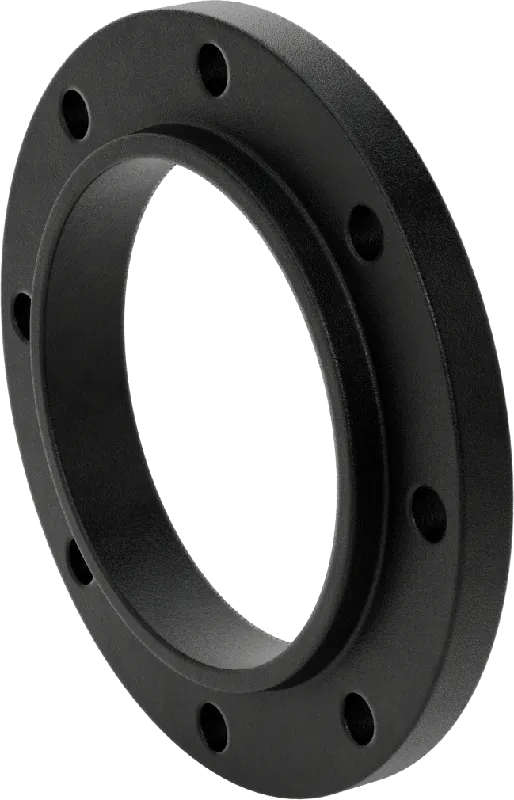

Bolt two flat-surface flanges or two raised-surface flanges of the same size together with a gasket (sold separately) to create an access point in a pipe line. Flanges are for use with low-pressure applications in noncorrosive environments.
Slip-on-Weld Fitting Connection — Slip-on weld flanges have no internal stop; slide a pipe through the flange and weld on both sides.
Pressure Rating
Low Pressure
Shape
Straight
Fitting Type
Flange
Fitting Connection
Slip-On Weld Female
Pipe Size (A)
8
Pipe Size (B)
8
Flanged Connection Surface (B)
Raised
Flange OD
13 1/2″
For Bolt Diameter
3/4″
Bolt Hole Diameter
7/8″
Number Of Bolt Holes
8
Bolt Circle Diameter
11 3/4″
Pressure Class
150
Material
Steel
Maximum Pressure @ Temperature
285 psi @ 72° F
Maximum Steam Pressure @ Temperature
150 psi @ 300° F
Certificate Form
Digital
Certificate Type
Material Certificate with Traceable Lot Number
Connects To
Pipe
Flange Construction
One Piece
For Fitting Material
Iron, Steel
For Fitting Schedule
40
For Pipe Material
Steel
For Pipe Schedule
40
For Use With
Air, Natural Gas, Oil, Steam, Water
Specifications Met
ANSI/MSS SP-25, ASME B16.5, ASTM A105
Threading
Unthreaded
Country of Origin
United States
DFARS Compliance
Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN)
EAR99
REACH Compliance
Not Compliant
RoHS Compliance
RoHS 3 (2015/863/EU) Compliant
Schedule B Number
730791.2000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying
Yes
