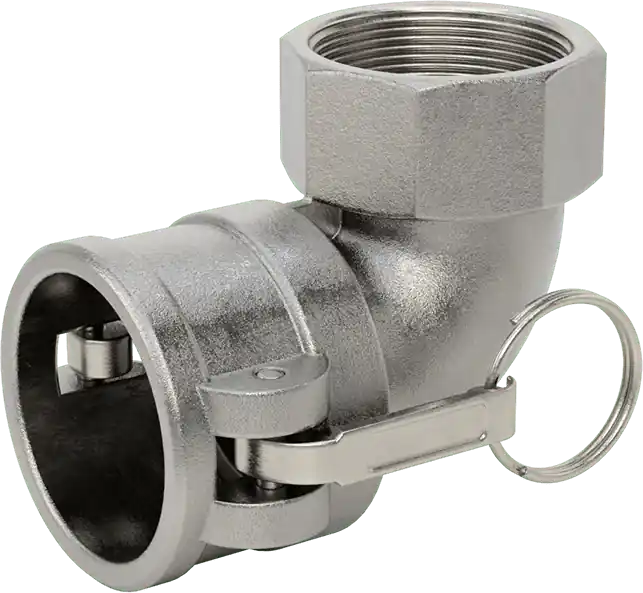

Name: McMaster 6795K17 316 Stainless Steel Cam-and-Groove Hose Coupling, 90 Degree Socket with 316 Stainless Steel Levers, 2 Coupling Size x 2 NPT Female
SKU: SK0020159-US20260630-101428
Availability: InStock

Made of metal, these couplings have better durability than plastic cam-and-groove couplings. A complete coupling consists of a plug and a socket (both sold separately) that allow you to quickly connect and disconnect medium-to-large-diameter hose lines. To connect, insert the plug into the socket and press the levers down. The levers fit snugly into the groove on the plug’s body and force the plug against the gasket to form a tight seal. The 90° elbow shape allows hose connections to make tight turns. Couplings are compatible with Andrews, Dixon, Ever-Tite, and PT cam-and-groove couplings. 316 stainless steel has excellent corrosion resistance.

For Use With	Citric Acid, Diesel Fuel, Gasoline, Hydraulic Fluid
Shape	90° Elbow
Type	Adapter
Cam-and-Groove Component	Socket
Socket Locking Type	Lever
Flow Control	Open
Connection Style	Cam-and-Groove Female × Threaded Female
Coupling Size	2
Socket ID	2 1/2″
Pipe Size	2
Thread Type	NPT
Dash Size	32
Material	316 Stainless Steel
Number of Levers	2
Lever Material	304 Stainless Steel
Pull Ring Material	300 Series Stainless Steel
Gasket Material	Buna-N Rubber
Maximum Pressure	250 psi @ 72° F
Temperature Range	-65° to 250° F
Compatible With	Andrews, Dixon, Ever-Tite, PT Cam-and-Groove
Specifications Met	Fed. Spec. A-A-59326
Country of Origin	United States
