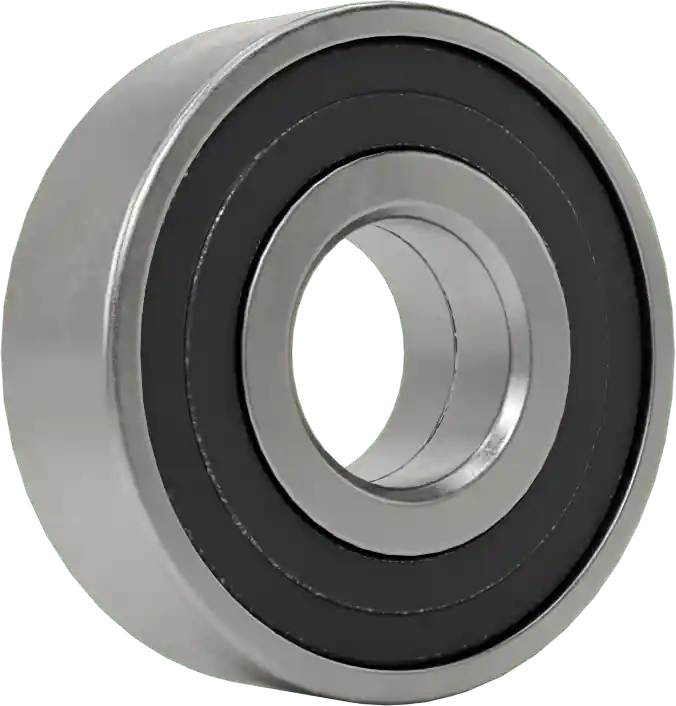

Smoother than smooth—the balls inside these bearings roll nearly friction-free. You’ll often find them on rapidly rotating parts, from the whirring chuck on a power drill to the spinning shaft on an electric motor.
Sealed — The best choice for dirty environments. A barrier seals out dust so it won’t gunk up or wear down the balls. However, these bearings retain the most heat since air can’t flow through.
Steel — Strong and wear resistant. However, these bearings are best for dry environments since moisture will cause them to rust.
For Shaft Type
Round
Bearing Seal Type
Sealed
Material
Steel
For Shaft Diameter
5/8″
For Housing ID
1 5/8″
Width
1/2″
Dynamic Radial Load Capacity
1,300 lb.
Static Radial Load Capacity
1,000 lb.
Maximum Rotation Speed
2,500 rpm
Temperature Range
-20° to 250° F
Bearing Trade Number
3028-2RS
Ball Material
Steel
Bearing Construction
Single Row
Bearing Type
Ball
Cage Material
Nylon
For Load Direction
Radial
ID
0.625″
OD
1.625″
Radial Clearance
0.001″ to 0.005″
Seal Material
Buna-N
Shaft Mount Type
Press Fit
Lubricant
Grease
System of Measurement
Inch
Country of Origin
United States
DFARS Compliance
Specialty Metals COTS-Exempt
ECCN
1C999
REACH Compliance
Not Compliant
RoHS Compliance
RoHS 3 (2015/863/EU) Compliant
Schedule B Number
8482.10.5048
USMCA Qualifying
Yes
