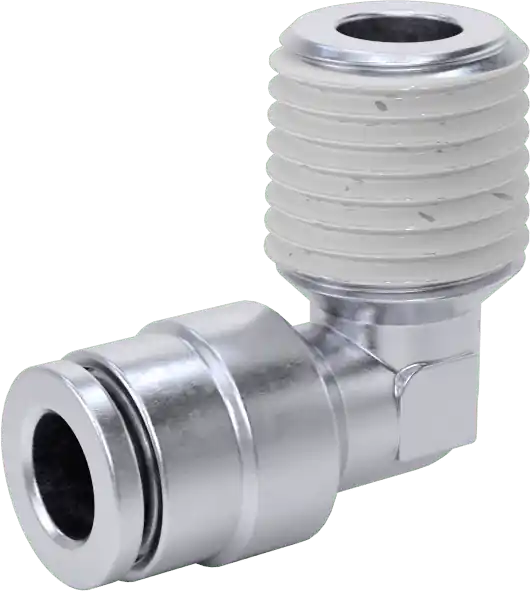

Name: McMaster 51495K239 Nickel-Plated Brass Push-to-Connect Tube Fitting, 90° Elbow Adapter, for 1/4" Tube OD × 1/4 NPT Male, for Air
SKU: SK0027870-US20260630-101428
Availability: InStock

Made of nickel-plated brass, these fittings have better corrosion resistance than unplated brass fittings. Also known as instant fittings, they connect to tubing with a push, and an internal gripping ring and O-ring hold the tubing tight. To disconnect, push on the release ring or sleeve and pull the tubing out of the fitting.

Fittings with thread sealant offer extra protection against leaks.

Shape	90° Elbow
Type	Adapter
For Use With	Air, Lubricated Air
Push-to-Connect End	Standard, Female, for 1/4″ Tube OD, Buna-N O-Ring
Threaded End	NPT Male, 1/4 Pipe Size
Material	Nickel-Plated Brass
Release Type	Ring
Release Ring Material	Nickel-Plated Brass
Maximum Pressure	230 psi @ 72° F
Maximum Vacuum	28 in. of Hg @ 72° F
Temperature Range	0° to 140° F
For Tube Material	Nylon Plastic, Polyethylene Plastic, Polyurethane Rubber
Features	Thread Sealant
RoHS Compliance	RoHS 3 (2015/863/EU) compliant with exemption 6(c) – Lead in copper alloy
REACH Compliance	REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant
DFARS Compliance	Specialty Metals COTS-Exempt
Country of Origin	Czech Republic
Schedule B Number	7412.20.0000
ECCN	EAR99
