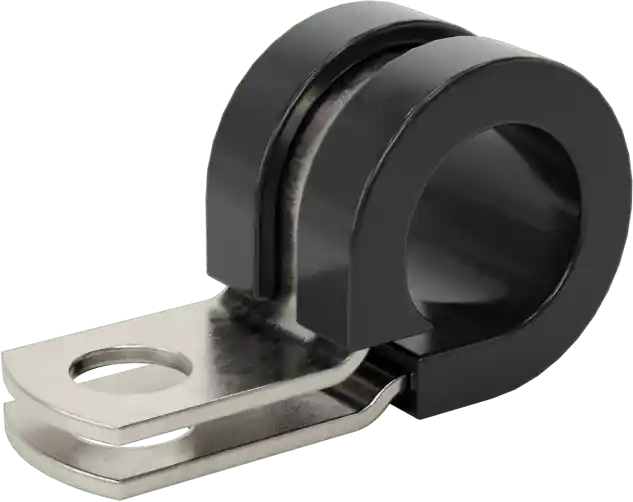

A molded cushion reduces vibration and wear from clamp edges, plus provides a tighter fit around material than standard vibration-damping loop clamps. Clamps surround lines completely while holding them close to the mounting surface.
Neoprene Cushion — Neoprene cushions are for use in environments where clamps are exposed to oil and ozone.
Material
321 Stainless Steel
Cushion Material
Neoprene
ID
3/8″, 10 mm
Cushion Color
Black
Center-to-Center Length
9/16″
Length
1 1/8″
Width
3/8″
Height
5/8″
Thickness
1/32″
Pack Size
5
Fasteners Included
No
Hole Diameter
13/64″
Temperature Range
-40° F to 210° F
For Use Outdoors
Yes
Military Specification
MS21919
For Copper Tube Size
1/4
For Number of Lines
1
Mount Type
Screw On
Number of Mounting Points
1
Performance
Chemical Resistant, Corrosion Resistant, Snug Fit, Vibration Damping
Country of Origin
United States
DFARS Compliance
Specialty Metals COTS-Exempt
ECCN
EAR99
REACH Compliance
Not Compliant
RoHS Compliance
RoHS 3 (2015/863/EU) Compliant
Schedule B Number
7326.90.8695
USMCA Qualifying
Yes
