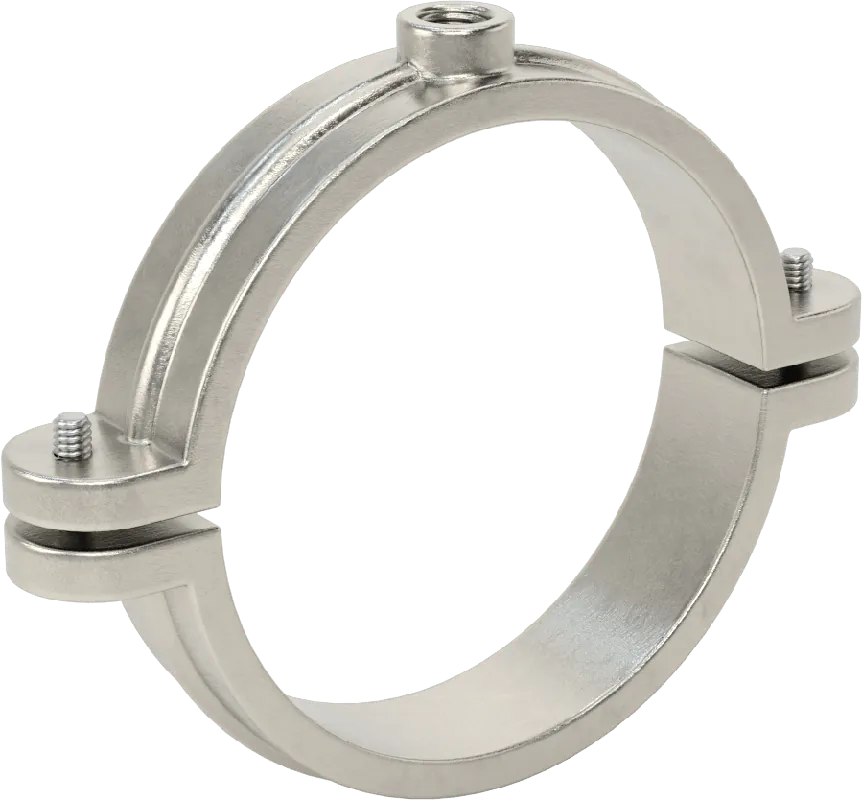

Place pipe between the hanger halves and adjust the side bolts for a tighter fit than other pipe hangers. When closed, the split ring forms a complete circle around the pipe for 360° support with no gaps. Mount by twisting a threaded rod through the threaded hole.
Hanger Type
Clamp
Material
304 Stainless Steel
For Inside Diameter (Inch)
4 1/2″
For Inside Diameter (Metric)
114 mm
For Pipe Size
4
For EMT Conduit
4
For IMC Conduit
4
For Rigid Conduit
4
For Thread Size
1/2″-13
Weight Capacity
300 lb.
Mounting Hole Diameter
1/2″
Closure Method
Bolt
Construction
Two Piece
Height
5 1/2″
Length
6 11/16″
Width
1 3/16″
Load Location
Top, Bottom
Military Specification
Fed. Spec. WW-H-171 Type 25
Mount Type
Through Hole
Mounting Location
Threaded Rod, Overhead
Performance
Snug Fit, Corrosion Resistant
Specifications Met
ANSI/MSS SP-58 Type 12
Threaded Rod Included
No
Country of Origin
China
DFARS Compliance
Specialty Metals COTS-Exempt
ECCN
EAR99
REACH Compliance
Not Compliant
RoHS Compliance
RoHS 3 (2015/863/EU) Compliant
Schedule B Number
732690.8630
USMCA Qualifying
No
