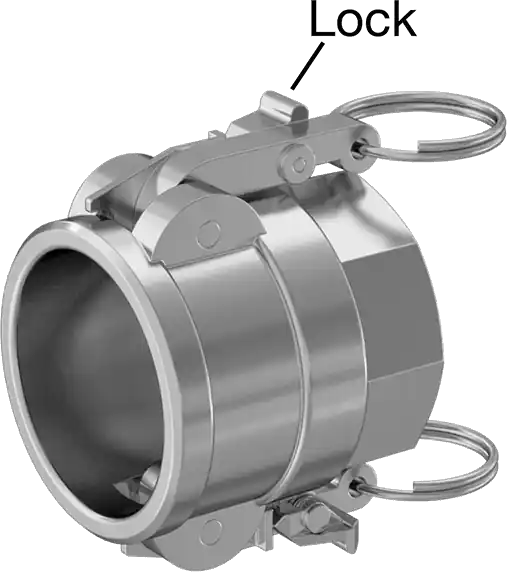

Name: McMaster 2005T54 Aluminum Cam-and-Groove Hose Coupling with Stainless Steel Levers, Straight Socket, Locking, 2 Coupling Size x 2 NPT Female
SKU: SK0020155-US20260630-101428
Availability: InStock

Made of metal, these couplings have better durability than plastic cam-and-groove couplings. A complete coupling consists of a plug and a socket (both sold separately) that allow you to quickly connect and disconnect medium-to-large-diameter hose lines. To connect, insert the plug into the socket and press the levers down. The levers fit snugly into the groove on the plug’s body and force the plug against the gasket to form a tight seal. To disconnect, lift both levers and pull out the plug. Couplings are compatible with Andrews, Dixon, Ever-Tite, and PT cam-and-groove couplings. Aluminum fittings are lighter in weight than 316 stainless steel fittings and have good corrosion resistance.

For Use With	Citric Acid, Diesel Fuel, Gasoline, Hydraulic Fluid
Shape	Straight
Type	Adapter
Cam-and-Groove Component	Socket
Socket Locking Type	Locking Lever
Flow Control	Open
Connection Style	Cam-and-Groove Female × Threaded Female
Coupling Size	2
Socket ID	2 1/2″
Pipe Size	2
Thread Type	NPT
Dash Size	32
Material	Aluminum
Number of Levers	2
Lever Material	316 Stainless Steel
Pull Ring Material	Zinc-Plated Steel
Gasket Material	Buna-N Rubber
Maximum Pressure	250 psi @ 72° F
Temperature Range	-65° to 250° F
Length	3 3/32″
Compatible With	Andrews, Dixon, Ever-Tite, PT Cam-and-Groove
Specifications Met	Fed. Spec. A-A-59326
Country of Origin	United States
