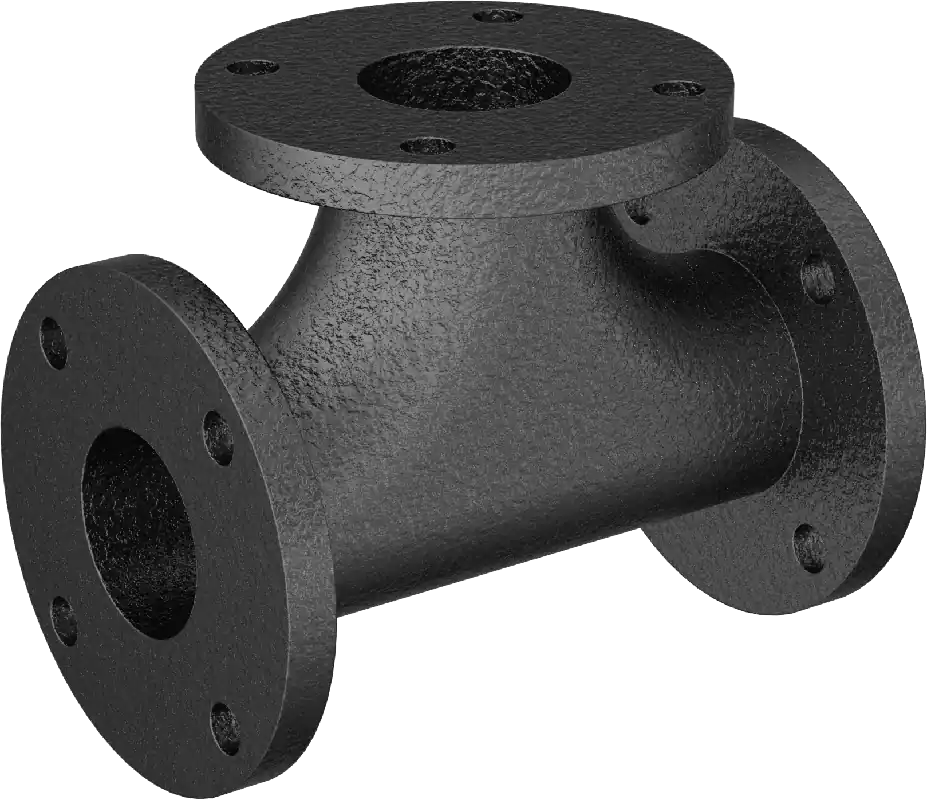

FM approved, these fittings are suitable for use in fire-protection systems. All have flat-surface flanged ends that only mate to another same-size flat-surface flange, pump, or valve with a gasket (sold separately) to create an access point in a pipeline. Use them in noncorrosive areas.
Pressure Rating
Low Pressure
End Type
Flanged
Shape
Tee
Fitting Type
Connector
Fitting Connection
Flanged
Pipe Size
3
Flange OD
7 1/2″
Material
Iron
Maximum Pressure @ Temperature
150 psi @ 72° F
Maximum Steam Pressure @ Temperature
125 psi @ 350° F
Certification
FM Approved, UL Listed
Bolt Circle Diameter
6″
Bolt Hole Diameter
3/4″
Number of Bolt Holes
4
Connects To
Pipe
Fabrication
Cast
Flanged Connection Surface
Flat
For Bolt Diameter
5/8″
Class
150
For Bolt Material
Steel
For Pipe Material
Steel
For Pipe Schedule
40
For Use With
Air, Natural Gas, Oil, Steam, Water
Military Specification
Fed. Spec. WW-F-406
Specifications Met
ASME B1.20.1, ASME B16.1, ASTM A126, ASTM B307
Country of Origin
Mexico
DFARS Compliance
Specialty Metals COTS-Exempt
ECCN
EAR99
REACH Compliance
Not Compliant
RoHS Compliance
RoHS 3 (2015/863/EU) Compliant
Schedule B Number
730711.0030
USMCA Qualifying
No
