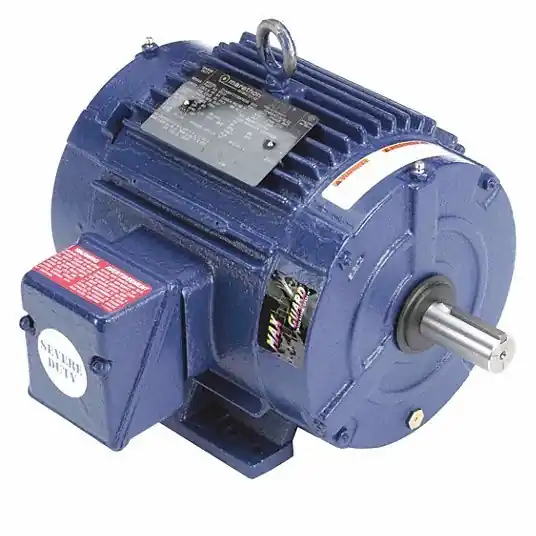

Marathon Motors 213TTTCD6501 Severe Duty Motor Totally Enclosed Non-Ventilated, Rigid Base Mount, 7 1/2 HP

Severe Duty Motor, Three-Phase, Totally Enclosed Non-Ventilated Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 3525 rpm, Frame 213T, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, Continuous Duty, 3001-3600

Motor Enclosure Design	Totally Enclosed Non-Ventilated	HP	7 1/2
Nameplate RPM	3525 rpm	Frame	213T
Motor Shaft Rotation	CW/CCW	Full Load Amps	8.9 A
Voltage	460V AC	Nominal Efficiency	91 %
Voltage Compatibility	200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC	Standards	CE Listed, CSA (LR2025), UL (E49747)
Phase	Three	Motor Frame Material	Cast Iron
Motor Mounting Type	Rigid Base	Motor Bearings	Ball
No. of Speeds	1	Motor Application	General Purpose
Ins. Class	F	RPM Group	3001-3600
Motor Thermal Protection	None	RPM Range	3001-3600
Motor Mounting Position	Horizontal	Hz	60 Hz
Motor Shaft Design	Keyed	Duty	Continuous
Motor Service Factor	1.15	CC Number	CC003A
Inverter Rated	Yes	Max. Ambient Temp.	40 Degrees C
Green Certification or Other Recognition	NEMA Premium(R) Rated	Usable @ 208V	No
Duty Cycle	Continuous	Usable @ 200V	No
