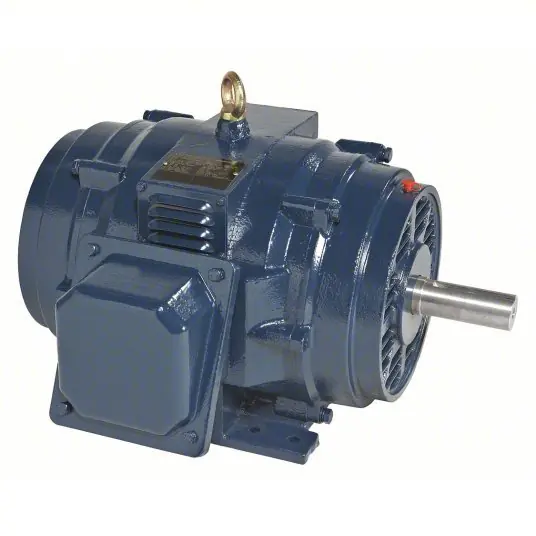

Marathon 365TTDBD6086 General Purpose Motor Open Dripproof, Rigid Base Mount, 50 HP, 230/460V AC

General Purpose Motor, 3-Phase, Open Dripproof Motor Enclosure Design, 50 HP, Nameplate RPM 1185 rpm, Frame 365T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 120.0/60.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.1 Percent, Continuous Duty, 1,101-1,200, CSA Certified, UL Recognized

HP	50
Nameplate RPM	1185 rpm
Voltage	230/460V AC
Motor Mounting Type	Rigid Base
Full Load Amps	120.0/60.0 A
Frame	365T
Motor Bearings	Ball
Motor Service Factor	1.15
Motor Design	3-Phase
Motor Enclosure Design	Open Dripproof
RPM Range	1,101-1,200
Phase	Three
No. of Speeds	1
Motor Application	General Application
Motor Shaft Rotation	CW/CCW
Voltage Compatibility	200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz	60 Hz
Ins. Class	F
Max. Ambient Temp.	40 Degrees C
Motor Frame Material	Steel
Motor Mounting Position	Horizontal
Motor Shaft Design	Keyed
Nominal Efficiency	94.1 %
Standards	CSA Certified, UL Recognized
CC Number	CC003A
Motor Thermal Protection	None
Inverter Rated	Yes
Includes	Conduit Box
Green Certification or Other Recognition	NEMA Premium(R) Rated
Weight	756 lb
NEMA Design	B
Duty Cycle	Continuous
Usable @ 200V	No
Usable @ 208V	No
Inverter Rating	10:1
