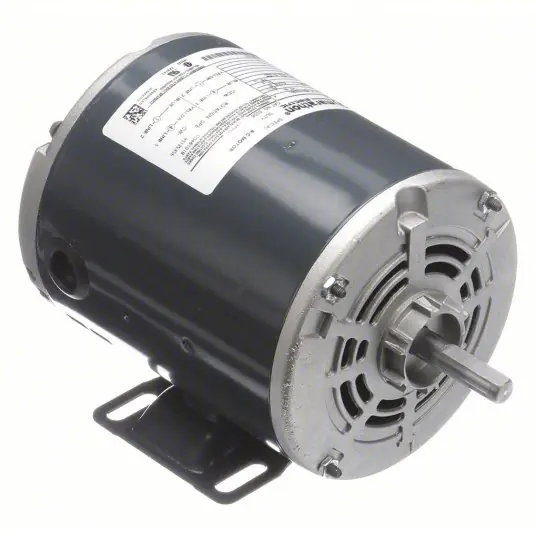

General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 6.6 A, 48 Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
Phase
Single
Motor Bearings
Ball
Motor Service Factor
1
Full Load Amps
6.6 A
Motor Frame Material
Steel
Frame Material
Rolled steel
Nameplate RPM
1,725
No. of Speeds
1
RPM Range
1,701-1,800
Ins. Class
B
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
104 Degrees F
Frame
48
Voltage
115V AC
Motor Thermal Protection
None
Duty
Continuous
Standards
CSA, UL recognized
Motor Application
General Application
Motor Design
Split-Phase
Item
General Purpose Motor
Nominal Efficiency
57.5 %
Motor Enclosure Design
Open Dripproof
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Hz
60 Hz
Motor Mounting Type
Rigid Base
RPM Group
1701-1800
HP
1/3
Weight
14 lb
Motor Mounting Position
Horizontal
Duty Cycle
Continuous
Usable @ 208V
No
Usable @ 200V
No
