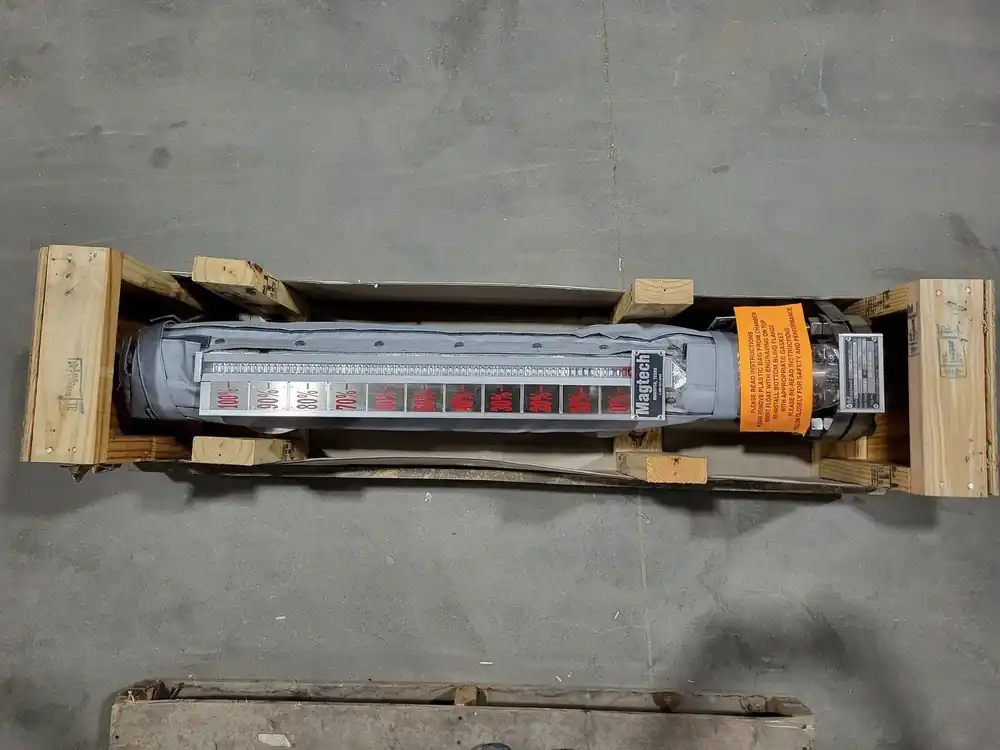

Magnetic Liquid Level Gage LG6 w/ Level Switch MLS-3Ex

Features

Visual indication from 100 ft.

No process liquid in contact with glass

Metallic flags or shuttle indicator (hermetically sealed)

Welding specifications to boiler/piping codes (ASME B31.1/B31.3)

Non-invasive alarms and transmitters

For high temperature, pressure and corrosive service

Replace problem sight glasses

Max Chamber Pressure: 559 psig

Max. Float Pressure: 2100 psig

Max. Temp: 302F

SG: Min. 0.500

SG: Cal. 0.600

Flanges: All stainless steel

MLS-3Ex Level Switch

Rating: 1 A max., 25 W max., 150 VAC/VDC, 60 Hz

Enclosure: Type 4X

Housing: Explosion-proof

Port: 1/2″ NPT

Deadband: 0.50″
