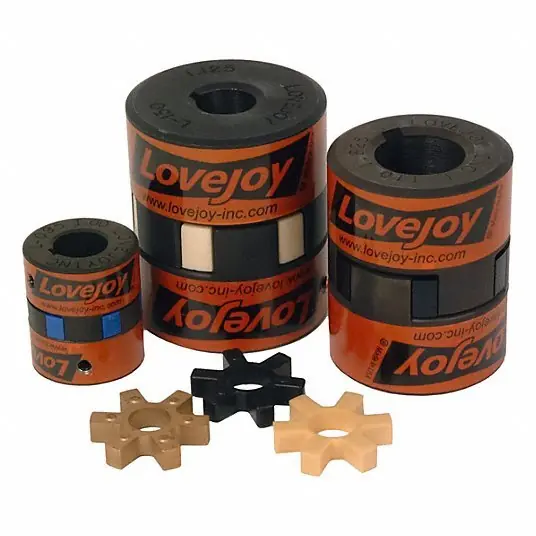

Lovejoy 68514437242 Jaw Coupling Hub L095 Coupling Size, 2 7/64 in Outside Dia, 2 33/64 in Coupling Overall Lg

Jaw Coupling Hub, Coupling Size L095, Outside Diameter 2 7/64 in, Coupling Overall Length 2 33/64 in, System of Measurement Inch, Hub Material Sintered Iron, Maximum Speed 9,000 RPM, Horsepower @ 100 RPM 0.308 (Buna N Rubber), 0.462 (Urethane), 0.890 (Hytrel and Bronze), Keyway Depth 5/64 in, Keyway Width 5/32 in, Bore Diameter 5/8 in, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Resistance Properties Water Resistant, Oil Resistant, Fail Safe Yes

Maximum Operating Temperature	212 Degrees F
Features	No Metal to Metal Contact
Minimum Operating Temperature	-40 Degrees F
Included Screws	(1) Set Screw
Fail Safe	Yes
Horsepower @ 100 RPM	0.308 (Buna N Rubber), 0.462 (Urethane), 0.890 (Hytrel and Bronze)
Standards	ANSI B92.1A, ANSI/AGMA 9002-B04, ANSI/AGMA 9112-A04, DIN 5480
Weight	0.76 lb
System of Measurement	Inch
Hub Material	Sintered Iron
Number of Locking Screws	1
Maximum Speed	9,000 RPM
Bore Type	Round Bore with Keyway
Resistance Properties	Water Resistant, Oil Resistant
