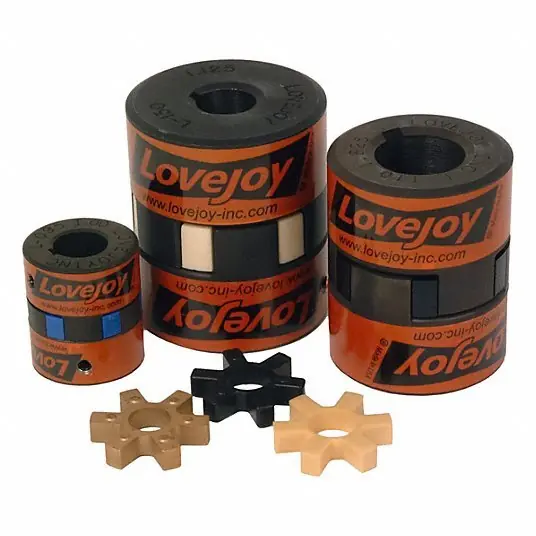

Lovejoy 68514411093 Jaw Coupling Hub L095 Coupling Size, 2 7/64 in Outside Dia, 2 33/64 in Coupling Overall Lg

Jaw Coupling Hub, Coupling Size L095, Outside Diameter 2 7/64 in, Coupling Overall Length 2 33/64 in, System of Measurement Inch, Hub Material Sintered Iron, Maximum Speed 9,000 RPM, Horsepower @ 100 RPM 0.308 (Buna N Rubber), 0.462 (Urethane), 0.890 (Hytrel and Bronze), Keyway Depth 1/8 in, Keyway Width 1/4 in, Bore Diameter 1 1/8 in, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Resistance Properties Water Resistant, Oil Resistant, Fail Safe Yes

Maximum Operating Temperature	212 Degrees F
Maximum Speed	9,000 RPM
Hub Material	Sintered Iron
Horsepower @ 100 RPM	0.308 (Buna N Rubber), 0.462 (Urethane), 0.890 (Hytrel and Bronze)
Fail Safe	Yes
Minimum Operating Temperature	-40 Degrees F
Features	No Metal to Metal Contact
Standards	ANSI B92.1A, ANSI/AGMA 9002-B04, ANSI/AGMA 9112-A04, DIN 5480
Number of Locking Screws	1
Weight	0.61 lb
Shaft Locking Type	Set Screw
Included Screws	(1) Set Screw
UPC	0685144110930
System of Measurement	Inch
Bore Type	Round Bore with Keyway
Resistance Properties	Water Resistant, Oil Resistant
