Low-profile and slim condensate tank pumps are smaller than other condensate pumps and fit into cooling systems with limited vertical clearance for gravity-assisted drainage and removing condensation.
Series
VCCA-20ULS
Pump Type
Low Profile Condensate Removal Pump
Compatible Media Type
Clear Water
Power Source
Corded Electric
Phase
Single
Nameplate Voltage
115V AC
HP
1/16 hp
Full Load Current
1.5 A
Frequency
60 Hz
Tank Material
Plastic
Body Gasket Material
Stainless Steel
Float Material
Polypropylene
Max Flow Rate @ 1 ft Head
1.33 gpm
Max Flow Rate @ 5 ft Head
1.17 gpm
Max Flow Rate @ 10 ft Head
0.75 gpm
Max Flow Rate @ 15 ft Head
0.42 gpm
Max. Head
20 ft
Max Operating Pressure
8.6 psi
Media Temp. Range
33 to 120 °F
Tank Capacity
7/16 gal
Number of Intakes
3
Intake
3/4 in Open
Discharge
3/8 in Barbed
Pump Activation Type
Float Switch
Includes Safety Switch
Safety Switch Included
Turn On Level
1.06 in
Shut Off Level
0.45 in
Cord Length
6 ft
For HVAC System Duct
Ducted
Plenum Rated
No
Standards
cULus
Application
Condensate Removal
Pump Technology
Centrifugal
Manufacturer Warranty
1 yr
Reviews
There are no reviews yet.

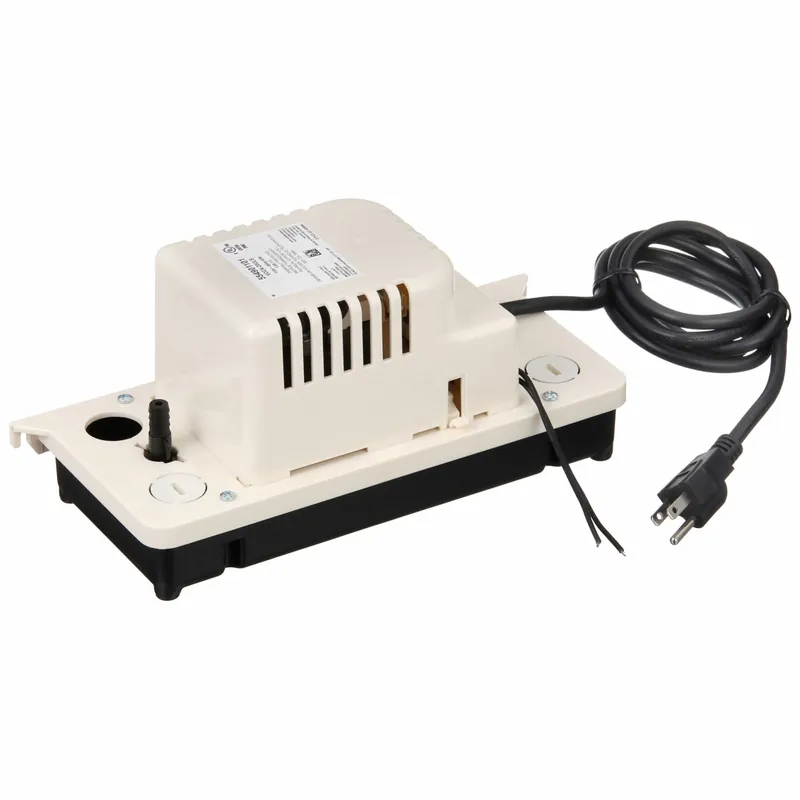

Be the first to review “Little Giant 554201101 Condensate Removal Pump, 115V AC, 7/16 gal Tank, 1/16 hp, 1.33 gpm, 20 ft Max Head”Cancel Reply
