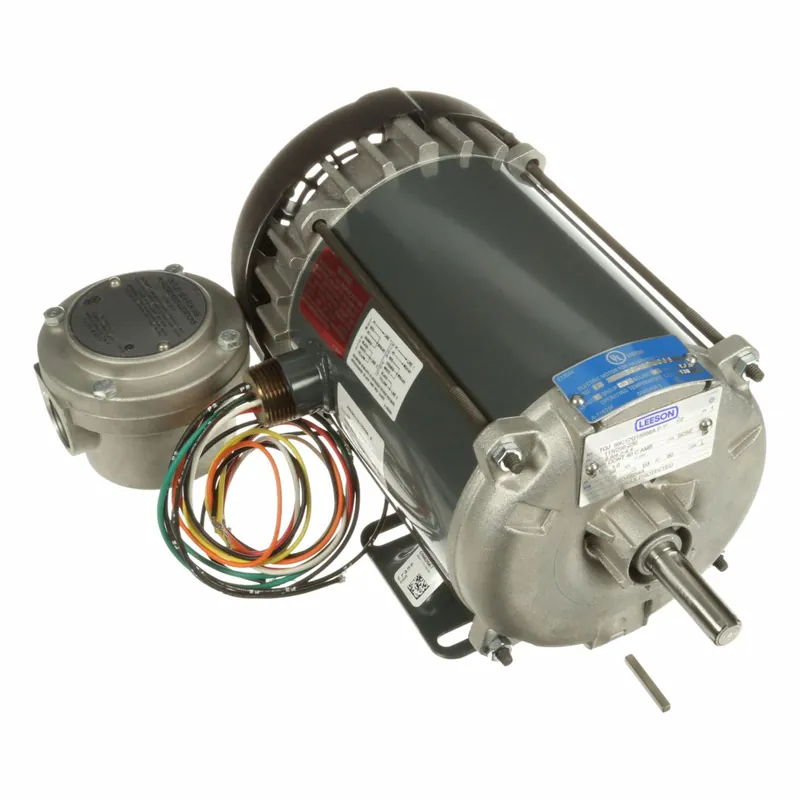

Hazardous Location Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 8.8/4.2-4.4 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Motor Design
Capacitor-Start
Phase
Single
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
115/208-230V AC
Frame
56
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Motor Service Factor
1
Duty
Continuous
Standards
CSA Certified, UL Listed
Hz
60 Hz
Motor Bearings
Ball
Full Load Amps
8.8/4.2-4.4 A
No. of Speeds
1
Ins. Class
B
Motor Shaft Design
Keyed
Includes
Explosion Proof Conduit Box
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Shaft Rotation
CW/CCW
Temp. Code
T3B
NEMA Design
None
Max. Ambient Temp.
40 Degrees C
Motor Application
Hazardous Location
Motor Frame Material
Steel
Nominal Efficiency
66 %
Nameplate RPM
1,725 RPM
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Motor Mounting Position
Horizontal
Duty Cycle
Continuous
Conduit Box Location
Exterior
Hazardous Location Division
Division I
Hazardous Location Group
Group C, Group D, Group E, Group F, Group G
Country of Origin
United States
