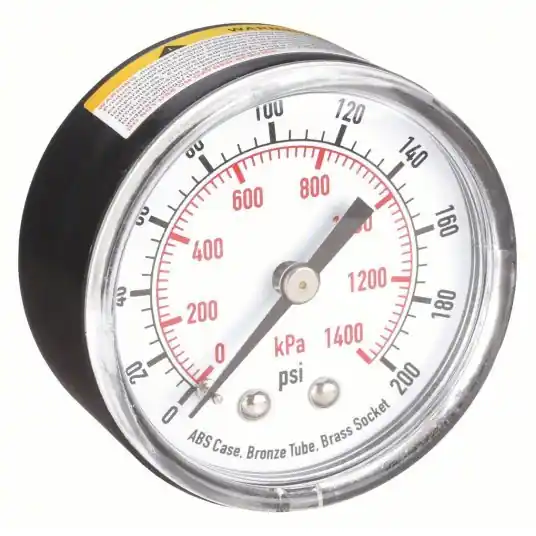

KVM Tools KV4FMC8 Commercial Pressure Gauge 0 to 200 psi, 2 in Dial, 1/4 in NPT Male, Center Back

Commercial Pressure Gauge, Accuracy +/-3-2-3 Percent, Gauge Case Material ABS Plastic, Nominal Dial Size 2 in, Lens Material Acrylic, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Sensor Material Bronze, Socket Material Brass, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Center Back, Process Connection Size 1/4 in, Panel-Mountable No, Pressure Gauge Type General Purpose Dial Pressure Gauge

For Use With	Air and Noncorrosive Fluids Such as Water and Oil in Pumps, Filters, Compressors, and Regulators
Gauge Application	General-Purpose Case
Range	0 to 1400 kPa, 0 to 200 psi
Accuracy	+/-3-2-3%
Material	ABS plastic
Color	Black
Application	Test and Measurement
Gauge Primary Range Values	0 to 200
Gauge Primary Range Units	psi
Gauge Connection Type	MNPT
Basic Gauge Case Material	Plastic
Case Color	Black
Calibration Certificate Included	No
Pressure and Vacuum Gauge Type	Pressure Gauge
Basic Gauge Socket Material	Brass
Gauge Secondary Range Units	kPa
Max. Pressure (PSI)	200
Liquid Filled	No
Basic Gauge Sensor Material	Bronze
Gauge Secondary Range Values	0 to 1400
Gauge Sensor Material	Bronze
Gauge Socket Material	Brass
Gauge Primary Range Smallest Graduation	5
Gauge Lens Material	Acrylic
Smallest Graduation	5 psi
Gauge Case Color	Black
Basic Gauge Lens Material	Plastic
Gauge Accuracy	+/-3-2-3%
Gauge Case Material	ABS Plastic
Gauge Connection Location	Center Back
Gauge Panel Mountable	No
Operating Temp. Range	-40 Degrees to 150 Degrees F
Basic Gauge Wetted Parts	Brass / Bronze
Socket Material	Brass
Removable Bezel	No
Hazardous Location Rating	Not Rated
Gauge Case Liquid	None
IP/NEMA Rating	Not Rated
Dial Color	White
Ambient Operating Temperature Range	-40 Degrees to 150 Degrees F
Panel-Mountable	No
Field Fillable	No
Dry Dampening Feature	None
Primary Scale Units	psi
Bezel Material	Crimped Stainless Steel
Includes Mounting Hardware	No
Process Connection Type	NPT
Freeze Resistant Movement	No
Secondary Scale Units	kPa
Primary Scale Minor Graduations	5
Lens Material	Acrylic
Pressure Gauge Type	General Purpose Dial Pressure Gauge
Sensor Material	Bronze
Non-Sparking	No
Includes Vent Plug	No
Includes Calibration Certificate	No
Blowout Safety Back	No
Pressure Range Type	Pressure
Process Connection Gender	Male
Process Connection Location	Center Back
Accuracy Scale	Mid-Scale
Cleaned for Oxygen Service	No
Liquid-Filled Case	No
Vibration Resistance	None
Secondary Pressure Range	0 to 1,400
Primary Pressure Range	0 to 200
Scale Type	Dual
