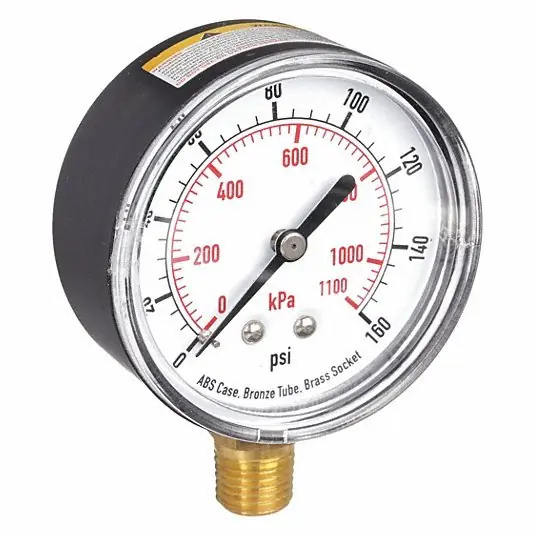

KVM Tools KV4FLW1 Commercial Pressure Gauge 0 psi / Hg to 160 psi, 2 1/2 in Dial, 1/4 in NPT Male

Commercial Pressure Gauge, Accuracy +/-3-2-3 Percent, Gauge Case Material ABS Plastic, Nominal Dial Size 2 1/2 in, Lens Material Acrylic, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Sensor Material Bronze, Socket Material Brass, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Bottom, Process Connection Size 1/4 in, Panel-Mountable No, Pressure Gauge Type General Purpose Dial Pressure Gauge

Accuracy	+/-3-2-3%
Process Connection Location	Bottom
Process Connection Type	NPT
Application	Test and Measurement
Gauge Case Material	ABS Plastic
Lens Material	Acrylic
Primary Pressure Range	0 to 160
Primary Scale Units	psi
IP/NEMA Rating	Not Rated
Liquid-Filled Case	No
Hazardous Location Rating	Not Rated
Panel-Mountable	No
Blowout Safety Back	No
Case Color	Black
Gauge Primary Range Smallest Graduation	5
Smallest Graduation	5 psi
Calibration Certificate Included	No
Gauge Application	General-Purpose Case
For Use With	Air and Noncorrosive Fluids Such as Water and Oil in Pumps, Filters, Compressors, and Regulators
Gauge Secondary Range Values	0 to 1100
Socket Material	Brass
Case Material	ABS Plastic
Connection Type	MNPT
Wetted Materials	Brass / Bronze
Secondary Scale Units	kPa
Non-Sparking	No
Dial Color	White
Includes Calibration Certificate	No
Includes Mounting Hardware	No
Ambient Operating Temperature Range	-40 Degrees to 150 Degrees F
Scale Type	Dual
Pressure Gauge Type	General Purpose Dial Pressure Gauge
Pressure Range Type	Pressure
Bezel Material	Crimped Stainless Steel
Vibration Resistance	None
Removable Bezel	No
Freeze Resistant Movement	No
Sensor Material	Bronze
Gauge Case Liquid	None
Includes Vent Plug	No
Cleaned for Oxygen Service	No
Primary Scale Minor Graduations	5
Secondary Pressure Range	0 to 1,100
Dry Dampening Feature	None
Field Fillable	No
Process Connection Gender	Male
Accuracy Scale	Mid-Scale
Maximum Pressure	160 psi
Operating Temperature Range	-40 Degrees to 150 Degrees F
