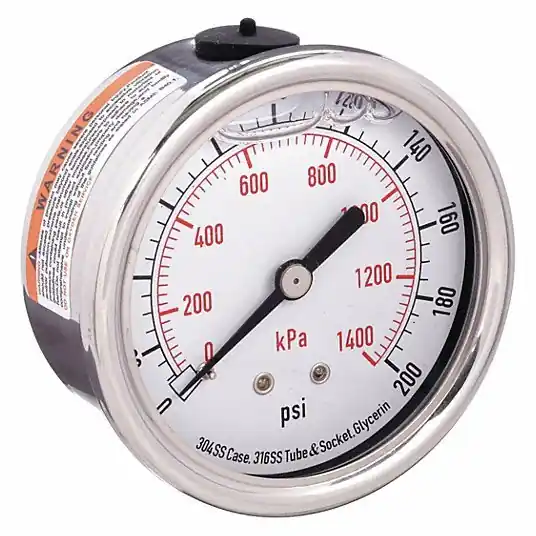

KVM Tools KV4CFR8 Commercial Pressure Gauge 0 psi / Hg to 200 psi, 2 1/2 in Dial, 1/4 in NPT Male

Commercial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Silver, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 200, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White

Accuracy	+/-3-2-3%
Process Connection Location	Center Back
Process Connection Type	NPT
Application	General Purpose
Gauge Case Material	304 Stainless Steel
Lens Material	Acrylic
Primary Pressure Range	0 to 200
Primary Scale Units	psi
IP/NEMA Rating	Not Rated
Liquid-Filled Case	Yes
Hazardous Location Rating	Not Rated
Panel-Mountable	No
Blowout Safety Back	No
Gauge Application	Corrosion-Resistant Case
Gauge Secondary Range Values	0 to 1400
Smallest Graduation	5 psi
Calibration Certificate Included	No
Case Color	Silver
Gauge Primary Range Smallest Graduation	5
Gauge Filled With	Glycerin
For Use With	Air, Water, and Oils in Hydraulic Equipment, Pressure Washers, Pumps, and Compressors
Socket Material	316 Stainless Steel
Case Material	304 Stainless Steel
Connection Type	MNPT
Wetted Materials	Stainless Steel
Pressure Range Type	Pressure
Process Connection Gender	Male
Includes Calibration Certificate	No
Dial Color	White
Ambient Operating Temperature Range	-40 Degrees to 140 Degrees F
Secondary Pressure Range	0 to 1,400 kPa
Includes Mounting Hardware	No
Freeze Resistant Movement	No
Vibration Resistance	Liquid-Filled
Accuracy Scale	Mid-Scale
Bezel Material	Crimped Stainless Steel
Pressure Gauge Type	Commercial Pressure Gauge
Sensor Material	316 Stainless Steel
Cleaned for Oxygen Service	No
Non-Sparking	No
Removable Bezel	No
Primary Scale Minor Graduations	1, 2
Includes Vent Plug	No
Gauge Case Liquid	Glycerin
Secondary Scale Units	kPa
Scale Type	Dual
Field Fillable	No
Dry Dampening Feature	None
Maximum Pressure	200
Operating Temperature Range	-40 Degrees to 140 Degrees F
Case Liquid	Glycerin
Operating Temperature – Minimum	-40 Degrees F
Primary Scale Pressure Measurement – Minimum	0 psi
Secondary Scale Pressure Measurement – Minimum	0 kPa
Operating Temperature – Maximum	140 Degrees F
Secondary Scale Pressure Measurement – Maximum	1,400 kPa
Primary Scale Pressure Measurement – Maximum	200 psi
