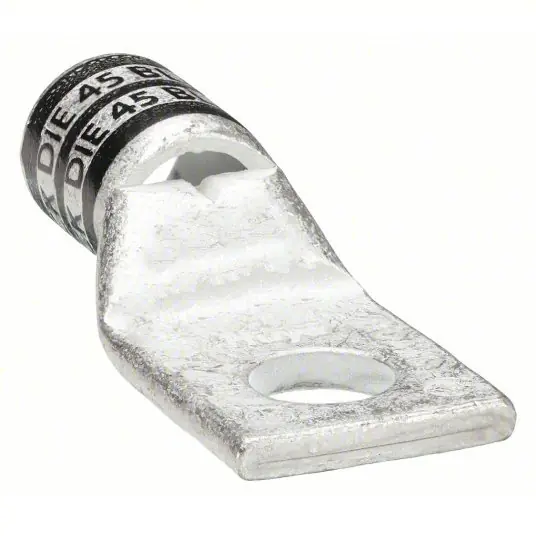

KVM Tools KV24C371 One-Hole Lug Compression Connector 2/0 AWG Max Wire Size, 1/2 in Stud Size

One-Hole Lug Compression Connector, Barrel Size Short, Color Code Black, Die Code 45, Tongue Angle Straight, Tongue Width 0.83 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size – Minimum 2/0 AWG, For Stranded Copper Wire Size – Maximum 2/0 AWG, Inspection Hole Yes, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed, Number of Holes 1

Connector Type	Straight Barrel
Material	Copper
Color Code	Black
Hole Center to End	0.5 in
UPC	190735432174
Tongue Style	Standard
Standards	CSA Certified, UL Listed
Die Code	45
Peep Hole	Yes
Contact Finish	Tin
For Wire Type	Stranded
Seam Style	Seamless
Barrel Style	Chamfered
Special Features	Corrosion Resistant, High-Conductivity Construction
Termination Style	Crimp
Tongue Angle	Straight
Inspection Hole	Yes
Maximum Operating Temperature	300 Degrees F
Maximum Voltage	600 V AC
For Conductor Material	Copper
RoHS Compliant	Yes
Current	265 A
