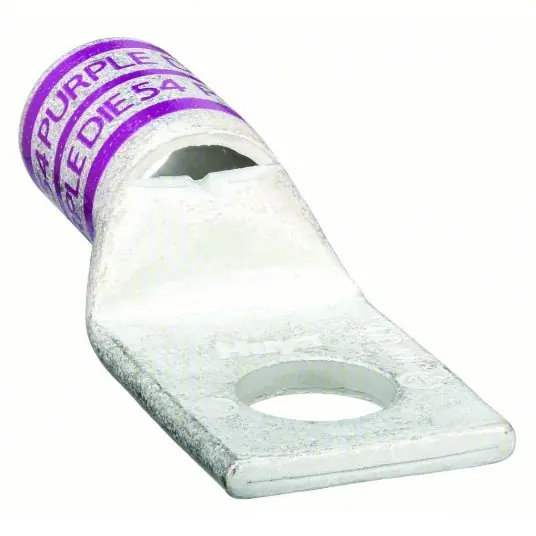

KVM Tools KV24C366 One-Hole Lug Compression Connector 4/0 AWG Max Wire Size, 3/8 in Stud Size

One-Hole Lug Compression Connector, Barrel Size Short, Color Code Purple, Die Code 54, Tongue Angle Straight, Tongue Width 1.03 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size – Minimum 4/0 AWG, For Stranded Copper Wire Size – Maximum 4/0 AWG, Inspection Hole Yes, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed, Number of Holes 1

Connector Type	Straight Barrel
Material	Copper
Color Code	Purple
Peep Hole	Yes
Die Code	54
Item	One-Hole Lug Compression Connector
Standards	CSA Certified, UL Listed
Tongue Style	Standard
Hole Center to End	0.38 in
RoHS Compliant	Yes
Maximum Voltage	600 V AC
Special Features	Corrosion Resistant, High-Conductivity Construction
Maximum Operating Temperature	300 Degrees F
Current	360 A
For Conductor Material	Copper
Inspection Hole	Yes
Contact Finish	Tin
Barrel Style	Chamfered
For Wire Type	Stranded
Seam Style	Seamless
Termination Style	Crimp
Tongue Angle	Straight
