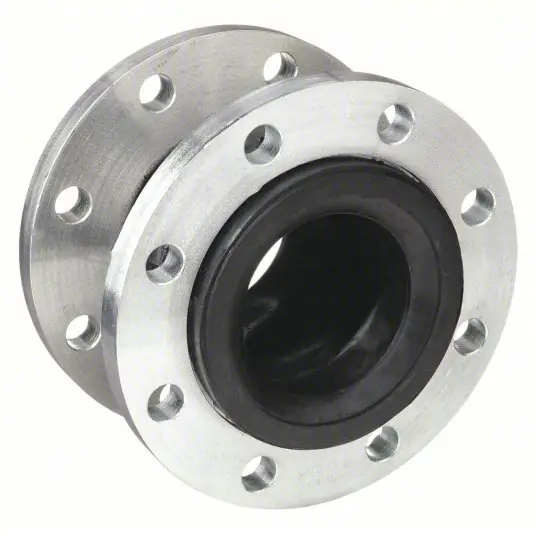

KVM Tools AMS208 Expansion Joint 8 in Pipe Size, Flanged, Zinc-Plated Steel, Neoprene Joint, 13 1/2 in Flange Dia

Expansion Joint, Bolt Circle Diameter 11 3/4 in, Bolt Hole Size 3/4 In.-10, Bolt Hole Threading Threaded, Burst Pressure 853 psi, Compression Distance 5/8 in, Connection Type Flanged, Expansion Distance 3/8 in, Expansion Joint Type Single Bulb, Features Absorbs Pipe Movement and Stress, Flange Diameter 13 1/2 in, Flange Material Steel, Flange Material Finish Zinc-Plated, For Fluid Type Air, Gas, Hydraulic Fluid, Water, Joint Material Neoprene, Joint Material Finish Not Applicable

Type	Single Sphere
Material	Neoprene
Bolt Holes	8
Vacuum	26 In Hg At 72 Deg F
Max. Pressure	225 psi @ 72 Degrees F
Temp. Range	-50 To 230 Deg F
Item	Expansion Joint
Connection	Drilled
Standards	ANSI 125150
Pipe Fitting Material	Neoprene
Reinforcement Material	Synthetic Fiber
Burst Pressure	853 psi
Compression Distance	5/8 in
Connection Type	Flanged
Maximum Vacuum Pressure	26 in Hg @ 72F
For Environment	HVAC, Industrial Piping, Marine Service, Petrochemical, Pollution Control, Power Generating, Pulp and Paper, Water and Wastewater
Expansion Joint Type	Single Bulb
Bolt Hole Threading	Threaded
Flange Material Finish	Zinc-Plated
Maximum Off-Center Angle	15 Degrees
For Fluid Type	Air, Gas, Hydraulic Fluid, Water
Resistance Properties	Corrosion Resistant
Maximum Operating Pressure	225 psi
Expansion Distance	3/8 in
Minimum Operating Temperature	-50 Degrees F
Number of Bolt Holes	8
Maximum Operating Temperature	230 Degrees F
For Use On	Pipe
Features	Absorbs Pipe Movement and Stress
Flange Material	Steel
Offset Distance	1/2 in
Joint Material	Neoprene
