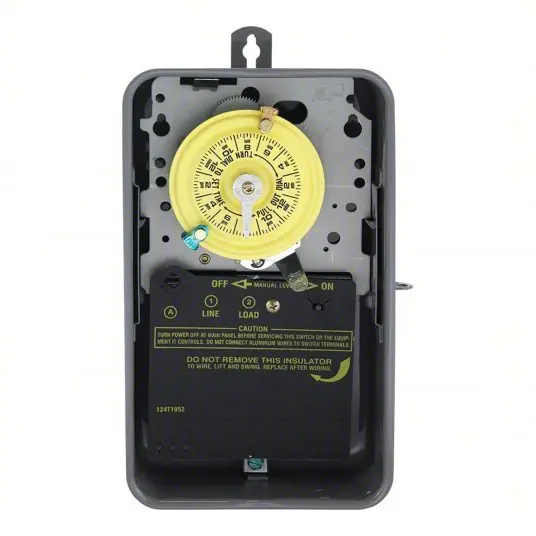

Intermatic T101R Electromechanical Timer 24 hr, 120V AC, SPST, Mechanical, 120V AC

Electromechanical Timer, 24-Hour, Number of Poles 1, Contact Form SPST, Voltage 120V AC, Amps 40 A, Contact HP @ 120V 2 hp, Contact HP @ 240V 5 hp, Day Skipper No, Enclosure Type Steel, Finish Metal Enclosure has Gray Enamel, NEMA Rating 3R, Min. Time Setting 1 hr, Max. Time Setting 23 hr, Max. On/Off Cycles 12, Width 5 1/2 in, Depth 3 5/8 in, Height 9 7/16 in, Number of Trippers Included 2, Extra Trippers 156T1961A

Voltage	120V AC
Amps	40 A
Enclosure Type	Steel
Min. Time Setting	1 hr
Max. Time Setting	23 hr
Contact Form	SPST
Max. On/Off Cycles	12
Extra Trippers	2E054
Description/Special Features	3R Enclosures in Steel or Noncorrosive Plastic, Has Adjustable Time Setting, Manual On/Off Override does not Alter Program, Snap-out Timing Mechanism, Up to 12 On/Off Settings Per Day
Time Setting Range	1 hr. to 23 hr.
Day Skipper	No
Nominal Max. Time Setting	24 hr
Contact HP @ 120V	2 hp
Contact HP @ 240V	5 hp
NEMA Rating	3R
Type	24-Hour
Number of Poles	1
Number of Trippers Included	2
Mount	Hole Wall
Finish	Metal Enclosure has Gray Enamel
Standards	cCSAus, cULus
Product Type	Timer
Operation Mode	24 hour
Electronic Ballast Load Ratings Ranges	16 A, 120 VAC
Application Compatibilities	LED; HID
Packaging Applications	Indoor/Outdoor Lighting; Signs; Filters; Electric Fences; Fans; Conveyors; Pool Heaters; Blowers; Pumps
Has Manual Override CVL	Yes
Operating Temperature Min	-40°C
Power Consumption Max W	3 W
Minimum On Off Time	1 hour
UL Certification	cULus
Market	Commercial; Industrial
Inductive Load Ratings	40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Solutions	Machinery & Pumps; Panel Integrators
Motor Load Ratings	2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz
Skipper Wheel Operation Mode	Not Included
Maximum On Off Operations	12
Electronic Ballast Load Ratings	16 A, 120 VAC
Operating Temperature Max	130°C
Input Voltage Ranges	120 VAC, 60 Hz
Tungsten Load Ratings Ranges	40 A, 120-240 VAC, 60 Hz
Pilot Duty Load Ratings	1000 VA, 120-240 VAC, 60 Hz
CSA Certification	cCSAus
Inductive Load Ratings Ranges	40 A, 120-240 VAC, 60 Hz
Tungsten Load Ratings	40 A, 120 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz
UL Cerfication File Number	UL917
Wiring Option	Terminals
Switch Type	SPST
Resistive Load Ratings Ranges	40 A, 120-240 VAC, 60 Hz
Number Of Circuits	1
Applications	Timing/Scheduling ON/OFF; Indoor Lighting Control; Outdoor Lighting Control
Resistive Load Ratings	40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Pilot Duty Load Ratings Ranges	1000 VA, 120-240 VAC, 60 Hz
Maximum ON/OFF Operations	12
Operating Temperature Max (°F)	130
Has Manual Override	Yes
Tungsten Range(s)	40 A, 120-240 VAC, 60 Hz
Operating Temperature Min (°F)	-40
Inductive	40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Input Voltage Range(s)	120 VAC, 60 Hz
Features	Manual Override
Skipper Wheel	Not Included
Electronic Ballast	16 A, 120 VAC
Tungsten (NO)	40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Resistive	40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Pilot Duty (NO)	1000 VA, 120-240 VAC, 60 Hz
Motor Load Ratings Ranges	2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz
Minimum ON/OFF Times	1 hour
Maximum Power Consumption (W)	3 W
Operating Temperature Max (°F)	130
Operating Temperature Min (°F)	-40
Operating Temperature – Maximum	130 Degrees F
Mounting Style	Surface
Compatible Lighting	HID, LED
AC Voltage Rating	120V AC
Number of Trippers – Maximum	2
Series	T100
Operating Temperature – Minimum	-40 Degrees F
On/Off Cycles – Maximum	12
Body Color	Gray
Current Rating – Maximum	40 A
Horsepower @ 240V – Maximum	5 hp
Body Material	Metal
Time Setting – Maximum	24 hr
NEMA Enclosure Rating	3R
Application	Lighting
Time Setting – Minimum	1 hr
Indoor/Outdoor Usage	Indoor, Outdoor
Horsepower @ 120V – Maximum	2 hp
