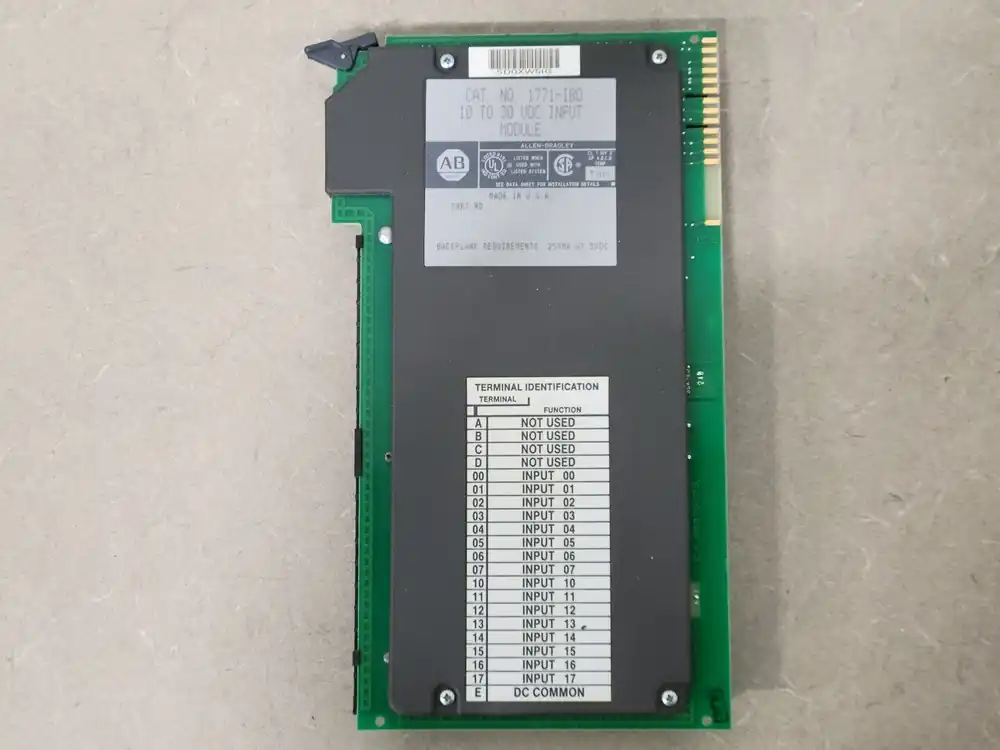

Input Module 1771-IBD 10-30VDC

Series: B

Wiring Arm Screw Torque: 7-9 inch-pounds

Compatible Chassis: All 1771 I/O Chassis except 1771-A1, -A2, and -A4

Backplane Current at 24 VDC: 130 mA @ 5 VDC +5%

Thermal Dissipation: 24.7 BTU/hr (max.)., 3.4 BTU/hr (min.)

Power Dissipation: 7.3 Watts (max.), 1.0 Watts (min.)

Input Delay Time, ON to OFF: 1 ms or 6 ms

Input Delay Time, OFF to ON: 1 ms

Number of Inputs: 16

Module Type: Digital DC Input Module

Circuit Logic: Sinking

Mounting: Rack Mount

Voltage Category: 10 to 60 DC, Sink

DC Operating Voltage: 10 to 30 Volts

Backplane Current: 130 Milliamperes

Max DC Off-State Current: 2.0 Milliamperes

Typical DC Signal Delay (On): 1.3 (+/- 0.1) Milliseconds

Typical DC Signal Delay (Off): 1.3 (+/- 0.1) Milliseconds

Wiring Arm: 1771-WH

Typical AC Signal Delay (Off): 20 (+/- 15) Milliseconds
