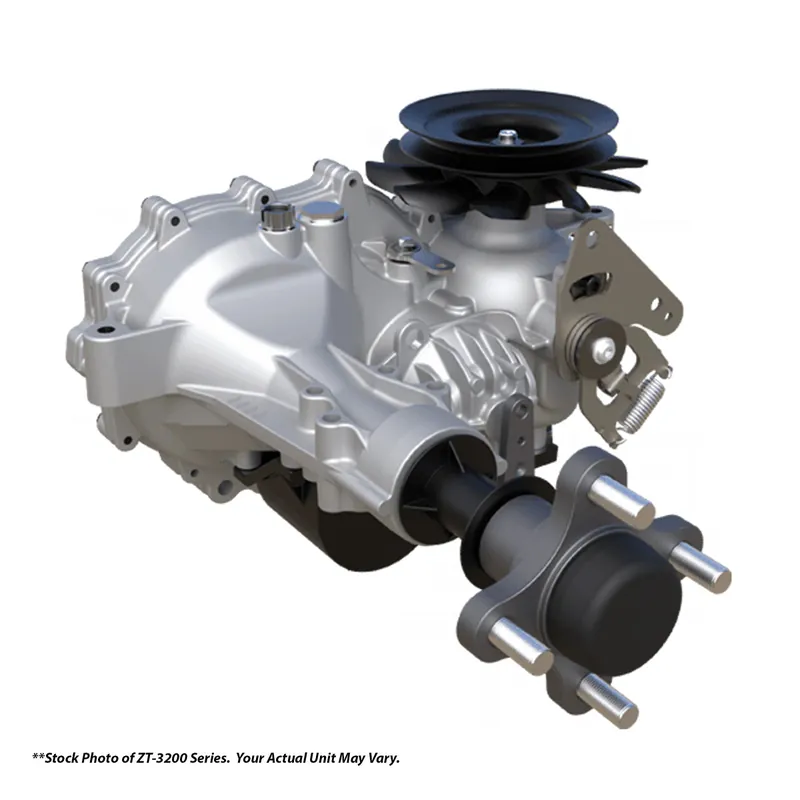

Hydro-Gear – ZL-KWEB-SFKC-3XRX – ZT-3200 Transaxle

ZT-3200^™

COMMERCIAL GRADE TRANSAXLE FOR LIGHTER WEIGHT APPLICATIONS.

In light commercial applications where you need a little more power, look no further than the Hydro-Gear ZT-3200™. In addition to the smooth, high-efficiency 10cc pump and 16cc motor, this system features a durable 1-1/8” axle shaft and delivers an impressive 470 ft. lbs. of torque. The Performance Package includes shock valves to extend system life, durable cut steel gears, and a charge pump.

Performance package – Shock valves, Cut steel gears, and Charge pump

Durable 1-1/8″ axle for heavier loads

Optional internal expansion tank for easier installation

Standard shock valves for added system protection and extended life

SPECIFICATIONS

OVERALL TRANSAXLE REDUCTION

TRANSMISSION MODEL ZJ – 20.69:1

TRANSMISSION MODEL ZL – 24.74:1

TRANSMISSION MODEL ZM – 27.23:1

PUMP DISPLACEMENT

61 in3 /rev [10 cc/rev]

MOTOR DISPLACEMENT

97 in3 /rev [16 cc/rev]

INPUT SPEEDS

MAX HI-IDLE (NO LOAD) – 3600 rpm

MIN (LOADED) – 1800 rpm

OUTPUT TORQUE

up to 470 lb-ft [up to 637 Nm]

SPEED

up to 9 mph [up to 14 kph]

GROSS VEHICLE WEIGHT

up to 1500 lbs [up to 544 kg]

AXLE SHAFT DIAMETER

125 in [28.56 mm]

AXLE SHAFT END OPTIONS

Tapered

4-bolt Flange

5-bolt Flange

WEIGHT OF UNIT

33 lbs [15 kg]
