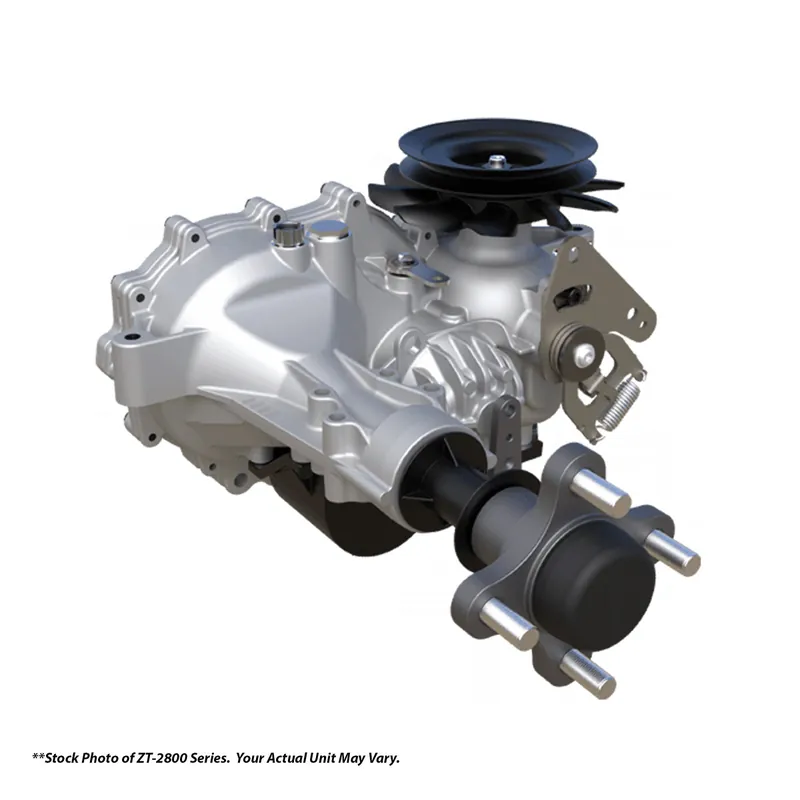

Hydro-Gear – ZK-KCBB-SKRA-2GLX – ZT-2800 Transaxle

ZT-2800^®

THE ESTATE-GRADE TRANSAXLE.

It’s the largest and most rugged residential transaxle we make, tackle the toughest properties with a high-efficiency 16cc motor and 10cc pump, and a standard debris-free internal brake. The efficient, serviceable design means longer life. For even greater performance, add the optional shock valves and charge pump.

Our most rugged residential transaxle for machines up to 1000lbs

Optional shock valves and charge pump for greater performance

External oil filter for easy maintenance

Optional internal expansion tank for easier installation

Serviceable design for longer life

Debris-free internal brake or external friction brake option

SPECIFICATIONS

TRANSMISSION MODEL

ZH/ZJ

ZK/ZL

ZM

OVERALL TRANSAXLE REDUCTION

TRANSMISSION MODEL

ZH/ZJ – 20.69:1

ZK/ZL – 24.74:1

ZM – 27.23:1

PUMP DISPLACEMENT

61 in3 /rev [10 cc/rev]

MOTOR DISPLACEMENT

97 in3 /rev [16 cc/rev]

INPUT SPEEDS

MAX HI-IDLE (NO LOAD) – 3000 rpm

MIN (LOADED) – 1800 rpm

OUTPUT TORQUE

up to 300 lb-ft [up to 406 Nm]

SPEED

up to 8 mph [up to 12 kph]

GROSS VEHICLE WEIGHT

up to 1000 lbs [up to 453 kg]

AXLE SHAFT DIAMETER

in [25.4 mm]

AXLE SHAFT END OPTIONS

Tapered

4-bolt Flange

5-bolt Flange

WEIGHT OF UNIT

32 lbs [14.5 kg]
