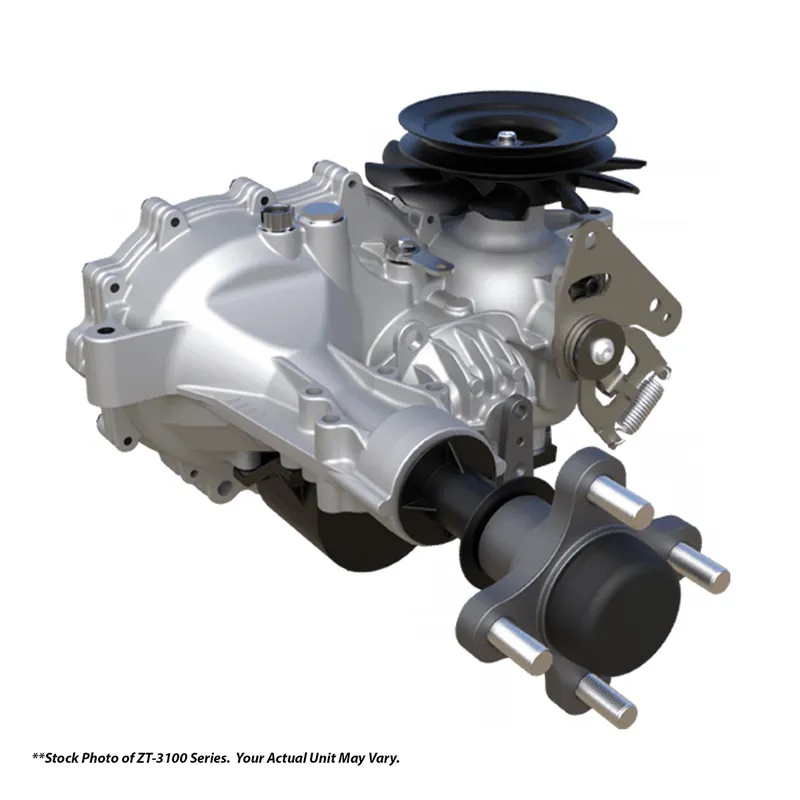

Hydro-Gear – ZJ-KMFE-SB5C-1PLX – ZT-3100 Transaxle

ZT-3100^®

OUR ENTRY-LEVEL COMMERCIAL-GRADE TRANSAXLE.

Hydro-Gear’s entry-level commercial transaxle is designed to give you reliable and quiet performance every time you turn the key. The ZT-3100® features a high-efficiency 10cc pump and 16cc motor, 1” axle shaft, and external oil filter for fast, easy maintenance. The Performance Package takes it up another notch with shock valves to extend system life, durable cut steel gears, and a charge pump.

Included shock valves to protect the systemand extend its life

External oil filter for easy maintenance

Optional internal expansion tank for easier installation

Performance package – Shock valves, Cut steel gears, and Charge pump

SPECIFICATIONS

OVERALL TRANSAXLE REDUCTION

TRANSMISSION MODEL ZJ – 20.69:1

TRANSMISSION MODEL ZL – 24.74:1

TRANSMISSION MODEL ZM – 27.23:1

PUMP DISPLACEMENT

61 in3 /rev [10 cc/rev]

MOTOR DISPLACEMENT

97 in3 /rev [16 cc/rev]

INPUT SPEEDS

MAX HI-IDLE (NO LOAD) – 3600 rpm

MIN (LOADED) – 1800 rpm

OUTPUT TORQUE
