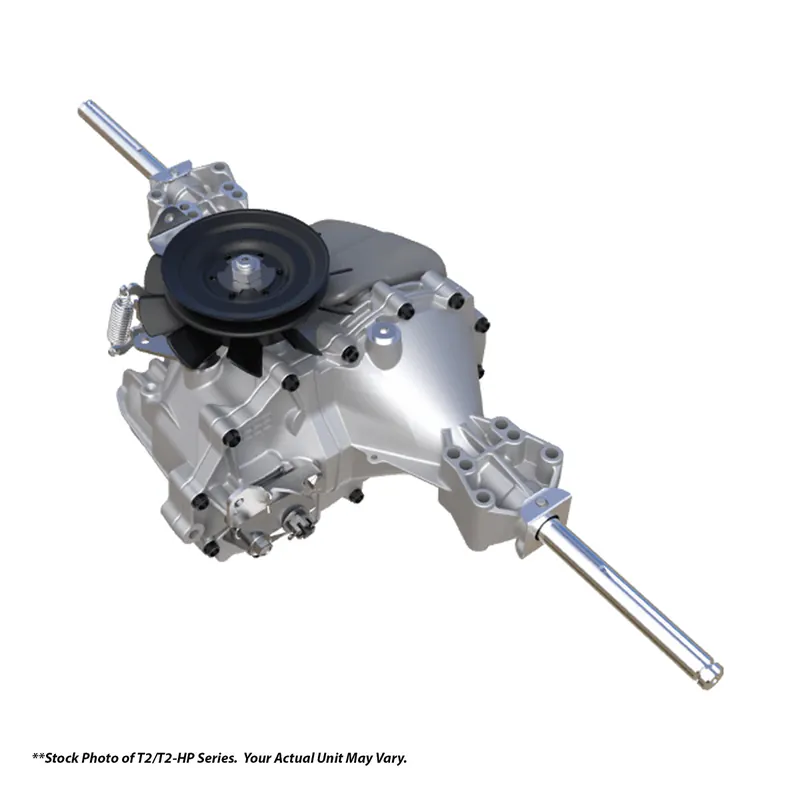

Hydro-Gear – T2-CCHE-4X3B-15X1 – T2 Transaxle for Snapper 1736637

T2^® / T2-HP^™

LIGHTWEIGHT YET DURABLE, COMPACT YET POWERFUL.

Lightweight yet durable, compact yet powerful. The T2® features rugged, die-cast aluminum housings and a sturdy ¾” axle that ensures top performance year after year. Its infinite speed control delivers precise handling even in the tightest spots. And the maintenance-free design means you’ll spend less time working and more time doing whatever you want.

Sturdy 3/4 in axle

Infinite speed control for precise handling

Maintenance-free design for ease of use

SPECIFICATIONS

OVERALL TRANSAXLE REDUCTION

Model T2 – 22.68:1

Model T2-HP – 25.42:1

INPUT SPEEDS

MAXIMUM HI-IDLE (NO LOAD) – 3000 rpm

MINIMUM (LOADED) – 1800 rpm

OUTPUT TORQUE – CONTINUOUS

Model T2 – 115 lb-ft [156 Nm]

Model T2-HP – 215 lb-ft [291 Nm]

OUTPUT TORQUE – INTERMITTENT

Model T2 – 145 lb-ft [197 Nm]

Model T2-HP – 285 lb-ft [386 Nm]

AXLE SHAFT DIAMETER – 0.75 in [19.05 mm]

AXLE SHAFT END OPTIONS – Keyed or DD

PARKING BRAKE TYPE – External Disc

WEIGHT OF UNIT – 28 lb [12.7 kg]
