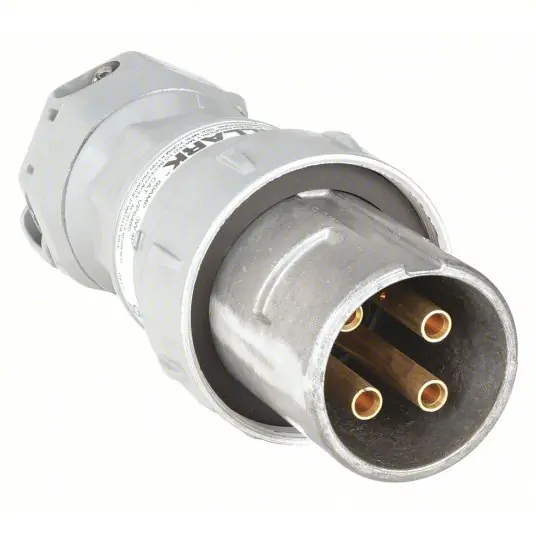

Pin and Sleeve Plug, Current Rating 60 A, Hazardous Location Specification Class I, Div 1 and 2, Group A, B, C, D, Horsepower Rating Not Applicable, Housing Color Gray, IP Rating Not Rated, Number of Poles 3, Number of Wires 3, Phase Three, Voltage Rating 250V DC, 600V AC, Wire Connection Type Screw Terminals, Cap Type Not Applicable, Connection Orientation Straight, Face Diameter 2.25 in, Grounding Grounded, Grounding Style Style 2, Housing Material Copper-Free Aluminum, Maximum Wire Size 2 AWG
Amps – Plugs and Receptacles
60 A
Number of Poles
3
Number of Wires
3
Switch Rated
No
Grounding Style
Style 2
Finish
Epoxy Polyester
Standards
CSA Certified LR111846, UL E10757
Voltage
600V AC/250V DC
Amps
60 A
NEMA Rating
4x
Item
Pin and Sleeve Plug
Material
Copper Free Aluminum with Electro Statically Applied Epoxy, Powder Finish
Features
Box Terminals with Gripper Ribs Securely Clamp Conductors, Octagonal Body Style, Suitable for Type P Marine Cable
Phase
Three
For Location
Indoor, Outdoor
Shrouded
Yes
Wire Connection Type
Screw Terminals
IP Rating
Not Rated
Connection Orientation
Straight
Housing Material
Metallic
Current Rating
60 A
Reverse Service
No
Hazardous Location Specification
Class I, Div 1 and 2, Group A, B, C, D
Housing Material Finish
Baked Powder Epoxy/Polyester Coated
Power Indicating Light
No
Horsepower Rating
Not Applicable
Housing Color
Gray
Grounding
Grounded
NEMA Enclosure Rating
4X
Market
Industrial
Voltage Rating
250V DC, 600V AC
Cap Type
Not Applicable
For Environment
Cold, Corrosive, Hazardous Location, Marine, Wet
Type
Pin & Sleeve
Hz
50-400 Hz
Pin & Sleeve Standards
CSA Certifications, UL Listed
Application
Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Reï¬neries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities
Amperage Rating
60 A
Style
Style II
Finish Type
Baked Powder Epoxy/Polyester Finish
Series
VersaMate
Grommet Range
0.65-1.50
Frequency Rating
50-400 Hz
