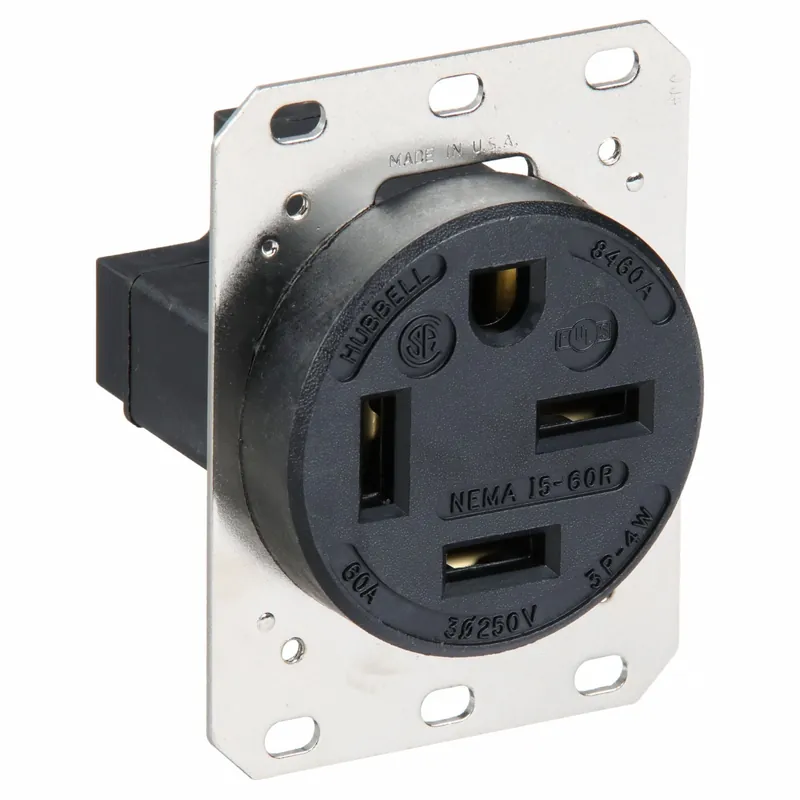

Hubbell HBL8460A Straight Blade Receptacle, 15-60R, 60A, 250V AC, Single, 3-Pole, 4-Wire
Original price was: $242.26.$60.56Current price is: $60.56.
Hubbell HBL8460A heavy-duty 60A single straight blade receptacle, NEMA 15-60R, 250V AC, three-phase, 3-pole, 4-wire grounded. Flush mount with screw terminals (back and side wiring). Black thermoplastic polyester body, brass contacts, plated steel mounting strap. Federal Specification W-C-596 spec grade. Withstands 2,000V dielectric.
| NEMA Receptacle Configuration | 15-60R |
|---|---|
| Current Rating | 60 A |
| Voltage Rating | 250V AC |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Wire Connection Type | Screw Terminals |
| Grounding | Grounded |
| Housing Color | Black |
| Mount Type | Flush |
| IP Rating | IP20 |
| Standards | CSA Certified, NEMA WD-6, UL E2186 |
| HP | 10 hp |
| Material | Thermoplastic Polyester |
| Contact Material | Brass |
| Receptacle Grade | Heavy Duty Spec Grade |
| Terminal Accommodation | #12 AWG through #4 AWG copper wire only |
| Country of Origin | United States |
