• Ribbed nylon housing provides a secure grip and impact and chemical resistance. • Superior cord grip design protects terminations from excess strain. • Clear, funnel shaped wire entry for ease of termination. • Integral dust shield protects wiring chamber from dust or contaminants.
NEMA Plug Configuration
L22-30P
Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Number of Blades
5
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Boot Code
C
Material
Nylon
Grade
Industrial
Application
Extra Heavy Duty Industrial
Polarized
Yes
Market
Industrial
For Environment
Dry
Horsepower Rating
10 hp
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees C
Blade Material
Brass
For Location
Indoor
Maximum Operating Temperature
75 Degrees C
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Amperage Rating
30 A
Material – Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Wiring Device-Kellems
Cord Type
All Listed Portables
Dielectric Strength
Withstands 2,000V minimum
Cord Range
0.350″-1.150″ (9-29)
Performance
Electrical – Current Interrupting – Certified for current interrupting at full rated current Electrical – Dielectric Voltage – 2,000V minimum Environmental – Flammability – HB or better per UL94/CSA 22.2 No.0.17 Environmental – Moisture Resistance – IP20 Suitability Environmental – Operating Temperatures – Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical – Terminal Accommodation – #16 AWG – #8 AWG stranded copper wire only. Mechanical – Terminal Identification – Terminals identified in accordance with UL 498
Antimicrobial
No
Amps
30
Country of Origin
United States
Reviews
There are no reviews yet.

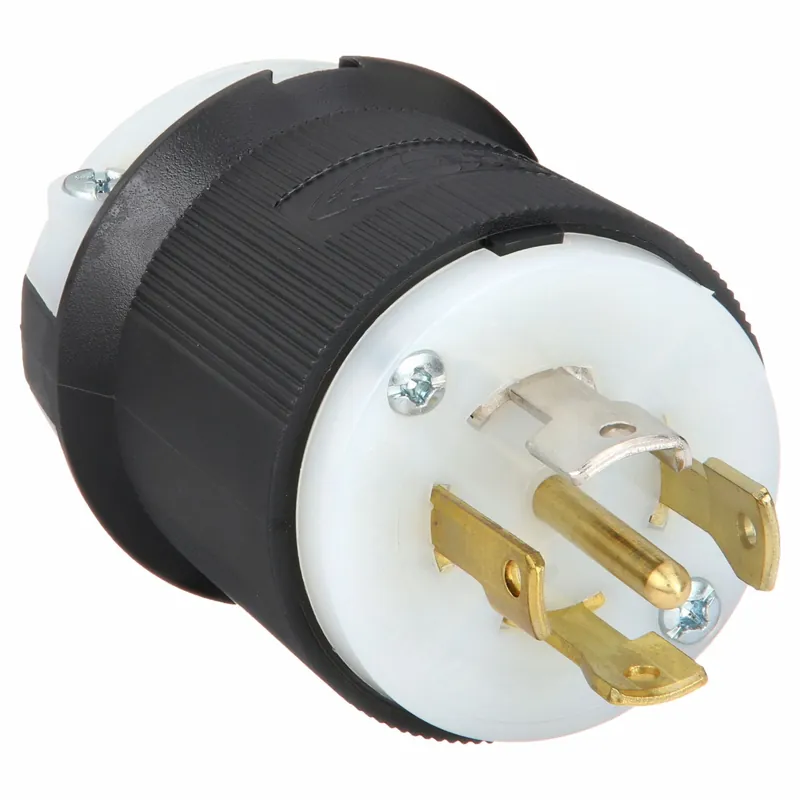

Be the first to review “Hubbell HBL2821 Locking Plug, L22-30P, 30 A, 277/480V AC, 3-Phase, 4 Pole, 5 Wire, Black/White”Cancel Reply
