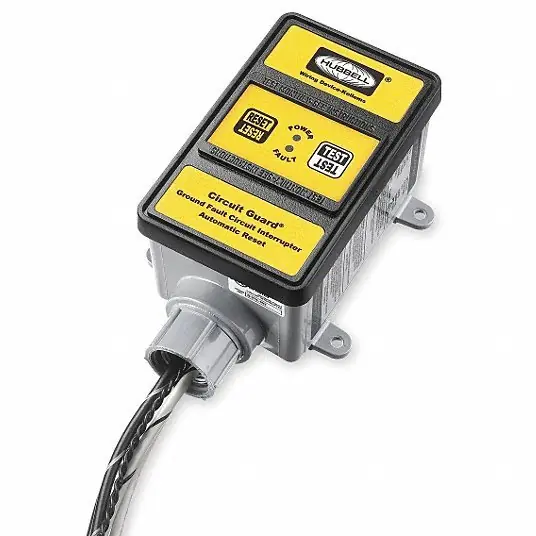

Hard Wired GFCI, 30 A Amps, Voltage 240V AC, Single Phase, Reset Type Automatic, Mounting Style Panel/Surface, Color Yellow, Inlet 3/4 in NPT, Enclosure Rating 4X, Audible Alert No, Lead Length 2 ft, Material Valox, Standards UL Listed, Min. Operating Temp. -30 Degrees F, Max. Operating Temp. 150 Degrees F
General
Application : Wire Into Circuit
Catalog Number : GFHW23105
Color: Yellow
Construction: Fabricated
EU RoHS Indicator : No
Item Type : Industrial Grade
Material – Insulation : Thermoplastic
OEM Brand Name : Hubbell Wiring Device-Kellems
Performance
Electrical – Dielectric Withstand – 1500 VRMS across contact, 4000 VRMS between conductors & enclosure
Electrical – Operating Voltage Range – 85% to 110%
Electrical – Rated Voltage – 120V AC, 240V AC & 120/240V, 3Ø 250V AC, 3Ø 120/208V AC
Electrical – Surge Withstand – 6000V impulse, 0.5 ms rise time 100kHz ringing frequency
Environmental – Construction – Industrial grade design
Environmental – Housing Rating – UL Type 4X
Environmental – Leakage Current – At 93% Humidity leakage current is zero
Environmental – Operating Temperature – -35°C to 66°C, -30°F to 150°F.
Environmental – Type – Class A GFCI
Series : Extra Heavy Duty
Specifications
Response Time – .025 sec. Max
Switch Interface – Double Insulated
Trip Level – 4 to 6 mA
Unit Color – Gray with black cover
Weight – 1.40 lbs.
Wire Leads – #10 AWG, 24″ long
Style: Automatic Set
Temperature Rating : -35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F)
Type: Hard Wired
UPC: 783585005249
Dimensions
Weight: 1.6 lb
Electrical Ratings
Amperage Rating : 30 A
Connectivity: Hard Wired
Current / Amperage Rating : 30 A
Current Rating: 30 A
Voltage Rating: 240 VAC
Voltage Rating Description : 240 VAC
Conductor Related
Conductor Size: #10 AWG
Conductor Type: Copper
Number of Conductors: 3
Strands: Multi
Certifications And Compliance
EU RoHS Indicator : No
Industry Standard(s): UL Listed
Operational
Performance
Electrical – Dielectric Withstand – 1500 VRMS across contact, 4000 VRMS between conductors & enclosure
Electrical – Operating Voltage Range – 85% to 110%
Electrical – Rated Voltage – 120V AC, 240V AC & 120/240V, 3Ø 250V AC, 3Ø 120/208V AC
Electrical – Surge Withstand – 6000V impulse, 0.5 ms rise time 100kHz ringing frequency
Environmental – Construction – Industrial grade design
Environmental – Housing Rating – UL Type 4X
Environmental – Leakage Current – At 93% Humidity leakage current is zero
Environmental – Operating Temperature – -35°C to 66°C, -30°F to 150°F.
Environmental – Type – Class A GFCI
Temperature Rating
-35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F)
