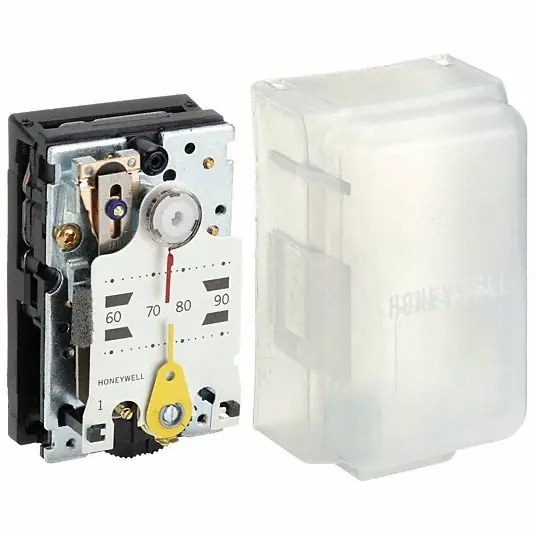

Pneumatic Thermostat, Direct Acting, 2 Pipe, Heating, Single Temperature, Air Connections 1/8 in, Element Type Bi-Metal, Max. Air Pressure 25 psi, Max. Ambient Temp. 100 Degrees F, Mounting Style Vertical, Height 3 1/4 in, Width 2 in, Depth 1 5/8 in, Temp. Control Range 60 Degrees to 90 Degrees F, Air Consumption 19 scim, Throttling Range 2 Degrees to 10 Degrees F
Item
Pneumatic Thermostat
Action Type – Pneumatic Thermostats
Direct Acting
No. of Pipes
2 Pipe
Thermostat Application
Heating
Temperature Output Settings
Single Temperature
Air Connections
1/8 in
Temp. Control Range
60 Degrees to 90 Degrees F
Element Type
Bi-Metal
Single Temp. / Dual Temp.
Single Temperature
1 Pipe / 2 Pipe
2 Pipe
Air Consumption
0.01 scfm
Heating / Cooling
Heating
Reverse Acting / Direct Acting
Direct Acting
Max. Air Pressure
25 psi
Max. Ambient Temp.
100 Degrees F
Mounting Style
Vertical
Throttling Range
2 to 10F
Action Type
Direct Acting
Number of Pipes
2
Maximum Air Pressure
25 psig
Action
Direct
Maximum Control Temperature
90 Degrees F
Temperature Control Range
60 Degrees to 90 Degrees F
Mounting Direction
Vertical
Mounting Direction/Includes Cover
Vertical, No
Manual Indexing Switch
No
Thermostat Action
Direct
Air Flow Output
High Volume
Temperature Settings
Single Temperature
Temperature Scale
Fahrenheit
Number of Dials
Single
Number of Pipes/Air Flow Output
2 Pipes, High Volume
Minimum Control Temperature
59 Degrees F
Compatible System Type
Pneumatic Valves and Damper Actuators
Product Type
Pneumatic Thermostat
Package Quantity
1
