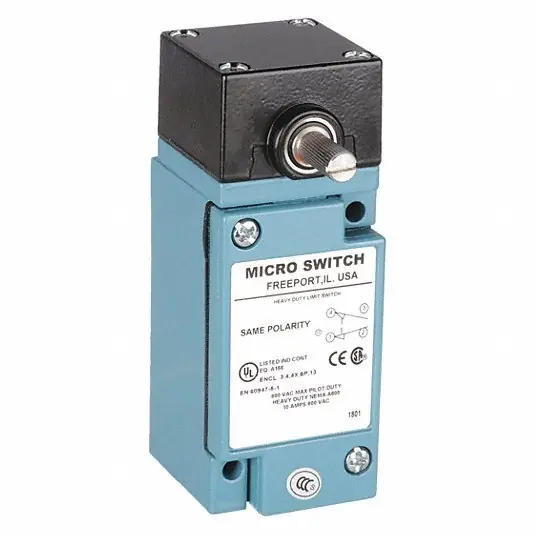

Honeywell LSA3K Non Plug-In Limit Switch Roller Lever, Metallic, Momentary, Non Plug-In, HDLS, 1NO/1NC

Non Plug-In Limit Switch, Actuator Style – Limit Switch No Lever, Rotary, Actuator Location – Limit Switch Side, AC Contact Rating – Limit Switch 10A @ 600V, DC Contact Rating – Limit Switch 10A @ 250V, Contact Form- Switches 1NC/1NO, Body Height – Limit Switch 2.95 in, Body Width – Limit Switch 1.62 in, Body Depth – Limit Switch 1.75 in, Boot Sealed Actuator – Limit Switch No, Body Style – Limit Switch Miniature, NEMA Rating 1, 12, 13, 3, 4, 4X, 6, 6P, Mounting – Limit Switch Surface

Basic Actuator Style – Limit Switch	Rotary
Actuator Style – Limit Switch	No Lever, Rotary
Contact Form- Switches	1NC/1NO
Actuator Location – Limit Switch	Side
AC Contact Rating – Limit Switch	10A at 600V
DC Contact Rating – Limit Switch	10A at 250V
Body Style – Limit Switch	Miniature
Mounting – Limit Switch	Surface
Number of Poles	1
Body Material	Zinc Die Cast
DC Contact Rating	10A at 250V
AC Contact Rating	10A at 600V
Mounting Hole – Limit Switch	(2) 0.20 in dia
Amps	10
Actuator Location	Side
Movement	CCW, CW
Voltage Rating	600VAC/250VDC
Actuator Style	Rotary Head, No Lever
Body Style (Limit Switch)	Miniature
Mounting Hole Spacing – Limit Switch	2.34 in x 1.16 in
NEMA Rating	1, 12, 13, 3, 4, 4X, 6, 6P
Operating Temp. Range	10 Degrees to 250 Degrees F
Travel	Differential Travel 5 Degrees , Maximum Pretravel 15 Degrees , Minimum Over Travel 60 Degrees
IP Rating	65, 66, 67
Stem Thread – Limit Switch	No Stem
Boot Sealed Actuator – Limit Switch	No
Series	LSA
Boot Sealed Actuator (Limit Switch)	No
Contact Form – Limit Switch	1NC/1NO
Electrical Connection	Screw Terminals
Contact Form	1NC/1NO, SPDT
Actuator Style (Limit Switch)	Rotary, No Lever
Mounting Hole Pattern – Limit Switch	2 Hole Diagonal
Standards	CCC, CE, CSA, UL
Actuator Location (Limit Switch)	Side
Limit Switch Style	Heavy Duty Limit Switch
Basic Actuator Style (Limit Switch)	Rotary
Operating Force	4.0 in-lb
Wiring Entry	1/2″-14 NPT
Differential Travel	5 Degrees
Operating Torque – Maximum	4 in-lb
Directional Movement	CCW/CW
Operating Temperature – Minimum	10 Degrees F
Mounting Hole Horizontal Center to Center Distance	60 mm
Resistance Properties	Corrosion Resistant
Mounting Hole Vertical Center to Center Distance	30 mm
Number of Mounting Holes	2
Operating Temperature – Maximum	250 Degrees F
Overtravel	60 Degrees
Includes Actuator	No Actuator Included
Body Configuration	Non Plug-In
Action	Momentary
Boot Sealed Actuator	No Boot Included
Pretravel	15 Degrees
Mounting Style	Surface
NEMA Enclosure Rating	1, 12, 13, 3, 4, 4X, 6, 6P
