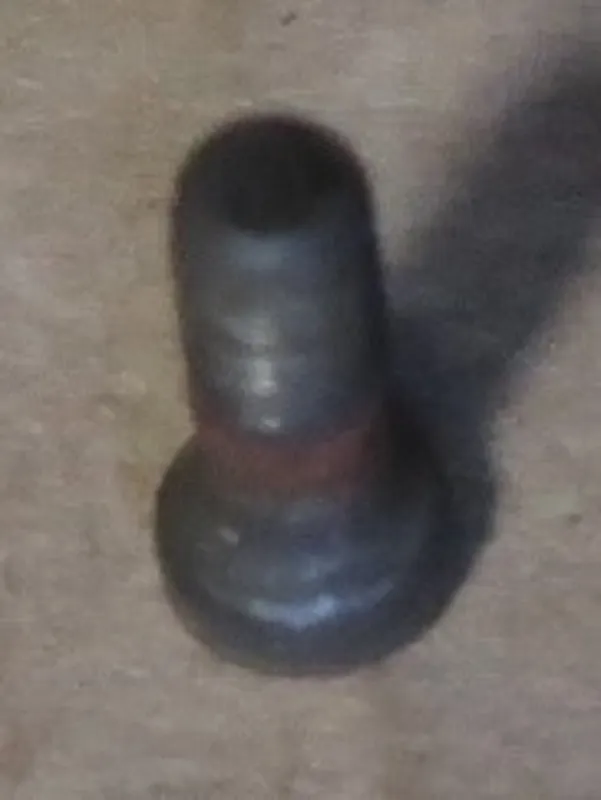

Hollow Cap Screw for Indexable 5512 090-09

Body Material (BMC): Steel

Type of Head (HEAD_TYPE): Cylindrical Head

Geometrical Characteristic driven Part (KGRPTP_1): Hexagon

Size of Driven Part (KGRPS_1): HEX 3.5

Head Diameter (HDD): 0.248 in.

Head Length (LH): 0.0472 in.

Thread Diameter Size TDZ_1): M 3.5

Thread Length (THLGTH_1): 0.2756 in.

Thread Hand THDH_1): Right

Thread Diameter Size (TDZ_2): M 5

Thread Hand (THDH_2): Right

Thread Length (THLGTH_2): 0.1457 in.

Overall Length (OAL): 0.2756 in.

Body Length (LB): 0.2756 in.

Coolant Exit Style (CXSC): no coolant exit

Coolant Entry Style (CNSC): without coolant entry
