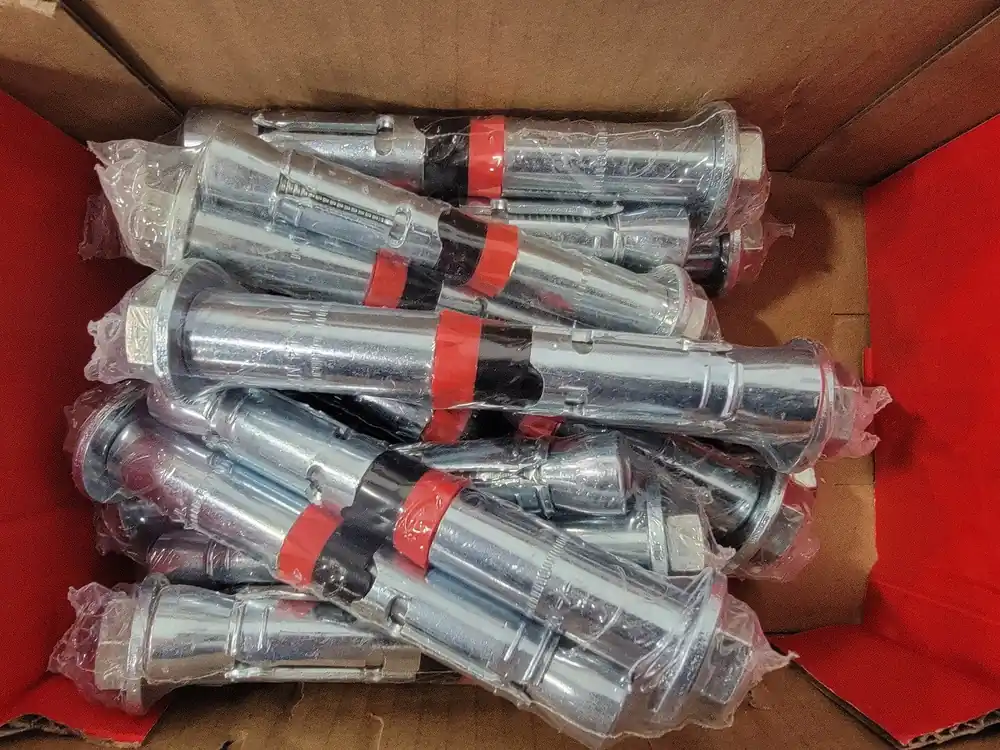

Heavy Duty Wedge Anchor HSL4 M12 (Box of 20)

Thread/ Nominal Size: M12 (anchor diameter 12 mm)

Drill Hole/ Drill Bit Diameter: 18 mm (for M12)

Typical Anchor Length (One Common Size): 131 mm (other lengths available: e.g. 111 mm, 156 mm)

Effective Embedment Depth (hef): 80 mm (standard) for some M12 variants

Base Material Requirement: Concrete (cracked or uncracked)

Material/ Coating: Carbon Steel, zinc-plated (min. 5 um)

Approvals/ Standards/ Load Ratings: Certified for high tension & shear loads; suitable for seismic/ dynamic/ fatigue / shock loading; meets ICC-ES/ LABS etc.
