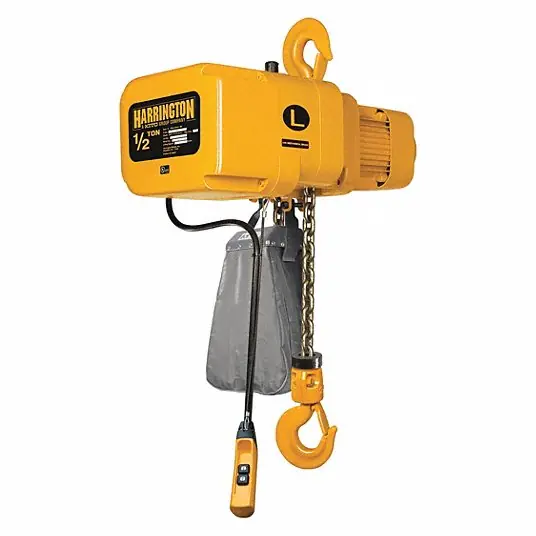

Harrington NER005L-20 Electric Chain Hoist H4 – Heavy Duty, 208-230/460V AC, Hook Mounted – No Trolley, 15 fpm

Electric Chain Hoist, Duty Classification H4, Mount Type Hook Mounted – No Trolley, Maximum Lifting Capacity 1,000 lb, Number of Speeds 1, Programmable Non-Programmable, Fixed Lift Speed 15 fpm, Minimum Lift Speed Not Applicable, Maximum Lift Speed Not Applicable, Maximum Lifting Length 20 ft, Current at Minimum Voltage 3.4 A, Current at Maximum Voltage 1.7 A, Motor Horsepower 3/4 hp, Operating Voltage 208-230/460V AC, Headroom 14 19/32 in

Electric Hoist Item	Chain Hoist
Hoist Lift	20 ft
Hoist Mount	Hook Mounted – No Trolley
Includes	Chain Container, Limit Switches, Plug-In Connections
Lift Speed	15 fpm
Load Capacity	1,000 lb
Min. Between Hooks	14 5/8 in
Motor HP	0.75 hp
Phase	3
Standards	ANSI/ASME B30.16, ANSI/ASME HST-1M, ANSI/NFPA 70, UL 1340
Voltage	208-230/460V AC
Fits Brand	Harrington Hoists Inc
Item	Electric Chain Hoist
Trolley Configuration	Hook Mounted – No Trolley
Lubrication	Oil Bath
Clutch	Friction
Amps @ Low Volts	3.4 A
Control	110V Push Button Control Pendant
Finish	Electrostatic Enamel
Number of Speeds	1
Thermal Protection	Yes
Brake	DC Current
Classification	H4
Control Cord	16 ft
Reeving	1
Material	Die Cast Aluminum
Features	Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option
Includes Clutch	Clutch Included
Lifting Hook Material	Carbon Steel
Resistance Properties	Corrosion Resistant, Wear Resistant
Overload Protection Included	Yes
Body Finish	Painted
Current at Min. Voltage	3.4 A
Number of Load Chains	1
Brake Type	DC Current
Chain Material	Alloy Steel
Pendant IP Rating	IP65
Body Material	Aluminum
Clutch Type	Friction Clutch
For Outdoor Use	Yes
Controls	Push Button Pendant
Fixed Lift Speed	15 fpm
Lifting Hook Type	Swivel Hook with Safety Latch
Chain Finish	Nickel Plated
Number of Reeves	1
Programmable	Non-Programmable
Motor Horsepower	3/4 hp
Mount Type	Hook Mounted – No Trolley
Maximum Lifting Capacity	1,000 lb
Headroom	14 19/32 in
Hoist IP Rating	IP55
Included Components	Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Current at Max. Voltage	1.7 A
Duty Classification	H4
Starts and Stops per Hour	360
Includes Brake	Brake Included
Chain Grade	Grade 80
Operating Voltage	208-230/460V AC
