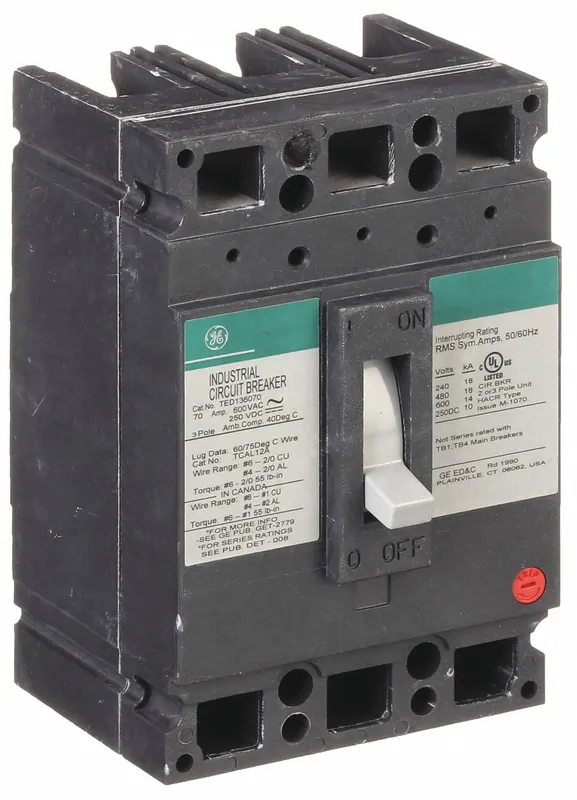

GE TED-frame molded case circuit breaker, 70A, 3-pole, 600V AC. Standard type for use with GE Panelboards. Max AIR rating 18kA at 120/240/277/480V AC. DC voltage rating 125/250/500V DC. Bolt-on panelboard mounting, thermal magnetic trip, fixed instantaneous trip. CSA Certified, UL Listed.
Amps
70 A
AC Voltage Rating
600V AC
Max. AIR Rating
18kA at 120/240/277/480V AC
For Use With
GE Panelboards
Circuit Breaker Type
Standard
Number of Poles
3
DC Voltage Rating
125/250/500V DC
Terminal Connection
Line/Load Lug
Trip Type
Thermal Magnetic
Phase
Three
Instantaneous Trip
Fixed
Phase Connection
ABC
Frame Size
150A/TED
Circuit Breaker Mounting Style
Bolt On Panelboard
Height
6.31 in
Width
4.13 in
Depth
4.09 in
Min. Wire Size
4 AWG (Al); 6 AWG (Cu)
Circuit Breaker Actuator
Toggle
Standards
CSA Certified; UL Listed
Series
TED
